Quicksilver MX wing wires, fittings, and tangs.

Because of constant price changes from suppliers it is difficult to provide up to date pricing on the internet for Quicksilver parts.

If you would like a quote on prices select the product(s) you require, and then check out, and we will email you a quote with the latest pricing, and shipping charges.

There is a charge for the price quote which is refundable with an order.
  20540 Wire, Wing, LWR LE IB MX/II
  20530 Wire, Wing, LWR LE OB MX/II
  20520 Wire, Wing, LWR TE OB MX/II
  20330 Shackle, 1/4 X 1 Inch
  20331 Shackle, 1/4 , Lwr. Fly.
  20510 Wire, Wing, LWR TE IB MX/II
  20570 Wire, Wing, UP LE OB MX/II/A
  20560 Wire, Wing, UP TE OB MX/II/A
  20550 Wire, Wing, UP TE IB MX/II/A
  20580 Wire, Wing, UP LE IB MX/II/A
  20360 Flat Tang CA2862
  20320 Shackle, USE AN115-21
  10440 Clevis pin
  20310 Ring, Safety
  20615 Wire, LG Side MX/II/A
  AN4 30A AN 4 30A bolt
  20280 Saddle, 1" X 1/4"
  20346 Washer, Nylon 1" X 1/4"
  AN3 7A AN3 7A bolt
  20109 Spoileron control rope
  20230 Pulley, Control
  20240 Bushing, Pulley
  20080 Channel, 1 Inch Formed
  20270 Channel, 1 Inch Kingpost
  AN4 20A AN4 20A
  10472 Pit pin (use AN bolt)
  40225 Tube Boom Tail xcpt MXH/IIHP/L
  70432 Spoiler Horn
  70431 Spoiler Crossover Plate
  70450 Spoiler Panel

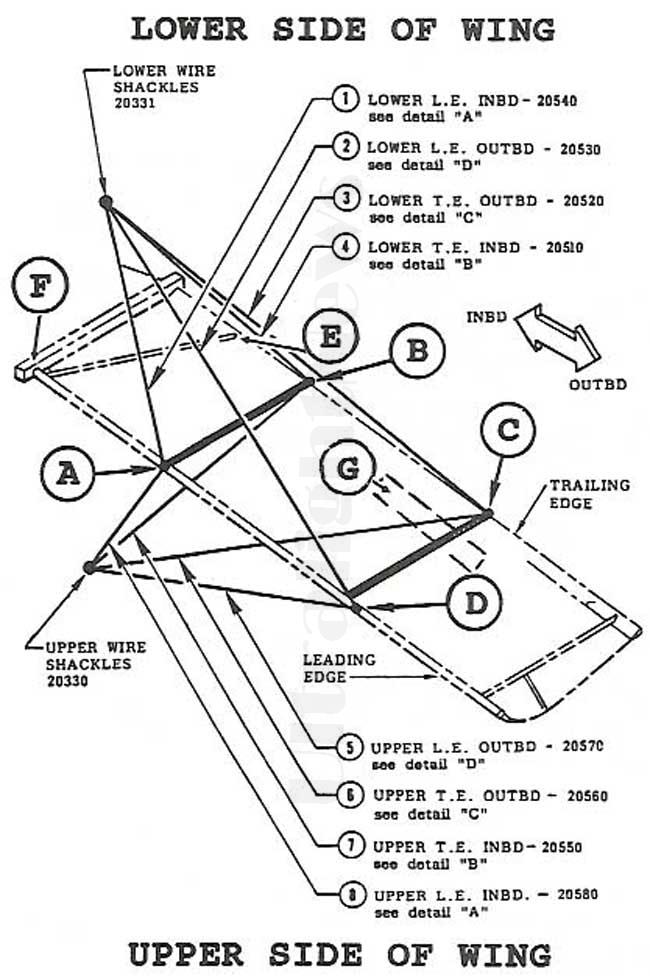

Quicksilver MX wing wires, Quicksilver MX lower wing wires, Quicksilver MX upper wing wires.

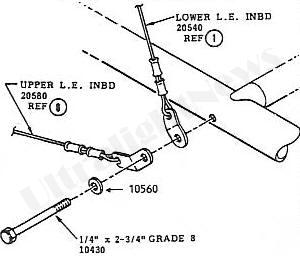

Quicksilver MX Lower and upper leading edge inboard A
Lower and upper leading edge inboard

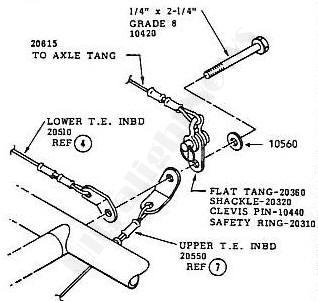

Quicksilver MX Lower and Upper Trailing Edge inboard B Lower and Upper Trailing Edge inboard

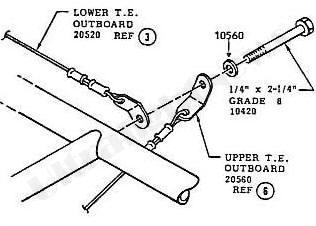

Quicksilver MX Upper and Lower trailing edge outboard C
Upper and Lower trailing edge outboard

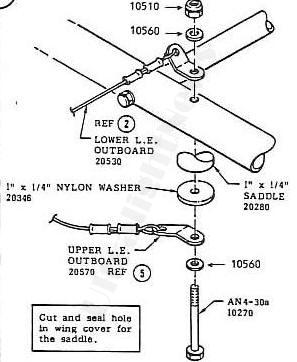

Quicksilver MX Upper and lower leading edge outboard D
Upper and lower leading edge outboard

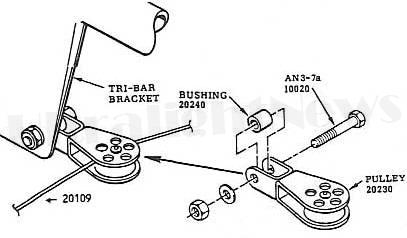

Quicksilver MX Spoiler Trike E
Spoiler Trike

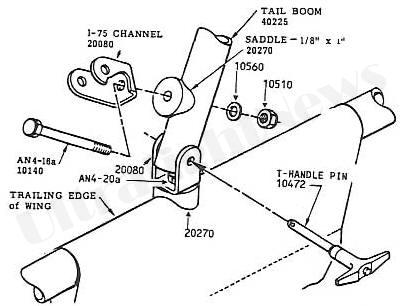

Quicksilver MX Trailing Edge of wing F
Trailing Edge of wing

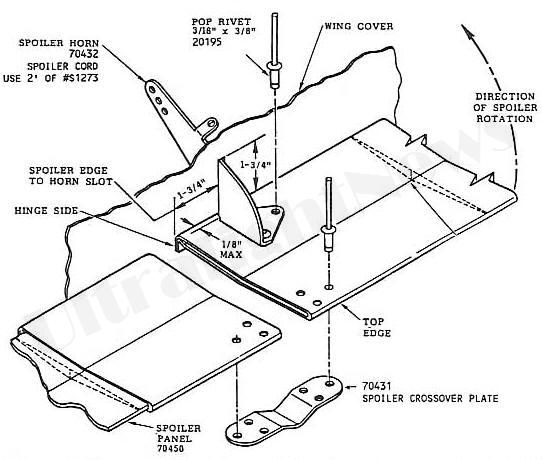

Quicksilver MX Spoileron Wing

G
Spoileron Wing
