Quicksilver MX wing parts
|
|
| Because of constant price changes from suppliers it is difficult
to provide up to date pricing on the internet for Quicksilver parts.
If you would like a quote on prices select the product(s) you require,
and then check out, and we will email you a quote with the latest
pricing, and shipping charges. |
|
| There is a charge for the price quote which is refundable with an
order. |
|
| 40120 |

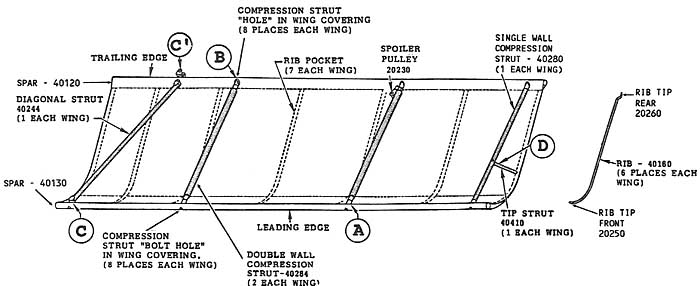

Spar, Wing, TE MX/Y/DQ |
|
| 40130 |
Spar, Wing LE MX/Y/DQ/QE |
|
| 40244 |

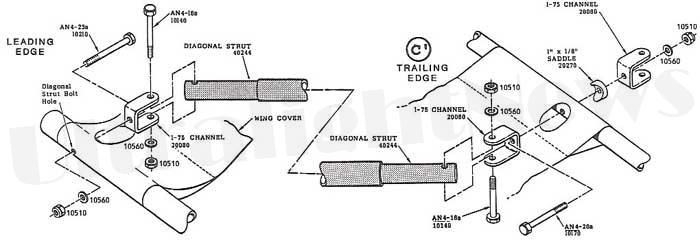

Strut, Diag., Sleeved MX |
|
| 40284 |

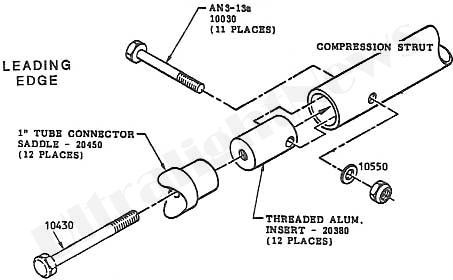

Strut, Comp, Slvd., MX/L/II |
|
| 20230 |

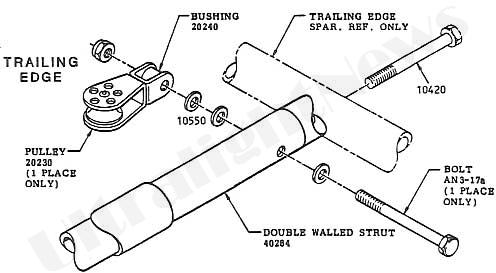

Pulley, Control |
|
| 40280 |
Strut, Comp., Wing Tip Only MX |
|
| 40410 |

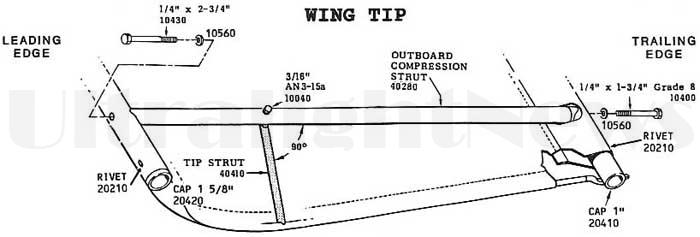

Strut, Tip MX |
|
| 20260 |
Rib Tips Rear Old Style |
|
| 20250 |
Rib Tip, Front, All |
|
| 40160 |
Rib, Y/DQ/QE/MX |
|
| 20450 |
Conn, Tube 1 Inch |
|
| 20380 |
Insert, Threaded. Alum. 1/4-20 |
|
| AN3 13A |
AN3 13A bolt |
|
| 20230 |
Pulley, Control |
|
| 20240 |
Bushing, Pulley |
|
| AN3 17A |
AN3 17A bolt |
|
| AN3 nut |
AN 3 nut |
|
| AN4 23A |
AN 4 23A bolt |
|
| AN4 18A |
AN4 18A bolt |
|
| AN4 nut |
AN4 nut |
|
| 20080 |
Channel, 1 Inch Formed |
|
| 20270 |
Plastic saddle |
|
| AN4 20A |
AN4 20A bolt |
|
| 40410 |
Strut, Tip MX |
|
| AN3 15A |
AN3 15A bolt |
|
| 20410 |
Cap, Tube 1" X .035 |
|
| |
|
| |
|
|
|
|
|
|
|
|
