Quicksilver MX trike parts, Quicksilver MX axle, foot pedal and tribar assembly.

Because of constant price changes from suppliers it is difficult to provide up to date pricing on the internet for Quicksilver parts.

If you would like a quote on prices select the product(s) you require, and then check out, and we will email you a quote with the latest pricing, and shipping charges.

There is a charge for the price quote which is refundable with an order.
40230 Tri-bar down tube
40385 Nose strut
40291 Landing gear down tube
40296 Landing gear down tube LW
40310 Axle
40381 Axle strut
40302 Tension strut
20270 Saddle
20345 Nylon washer
20100 Tri-bar channel
20060 Channel bracket
20290 Saddle
20630 Safety cable
20030 Axle shaft
20031 Collar for axle shaft
20080 Channel, 1 Inch Formed
20290 Saddle, 1-3/4"
10375 Eyebolt
20320 Shackle, USE AN115-21
20310 Ring, Safety
20495 Wire, Tail Lower MX/II
10440 Pin, Clevis 3/16 InchX7/32 Inch AN393-07
20020 Axle, Fit, Nose All
20040 Spacer, Nose Axle
20010 Axle, Nose, Narrow
20232 Pulley, 90 DEG Clevis
10385 Fork bolt
70231 Pedal, Foot L.W.
70250 Bushing, Tube 7/8 Inch
40430 Tube, Pedal Mount MX/L/H
60549 Brake, Nose Wheel, LW
60570 Foot rubber for brake
20080 Channel, 1 Inch Formed
20346 Washer, Nylon 1" X 1/4"
70550 Tube, Tri-Bar Cross, MX, MXL, MXS

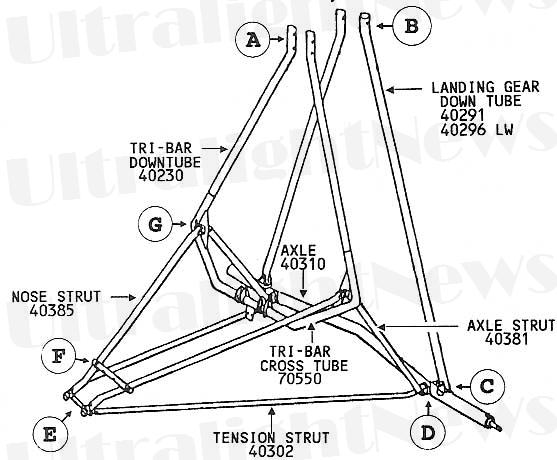

Quicksilver MX trike assembly tubing.

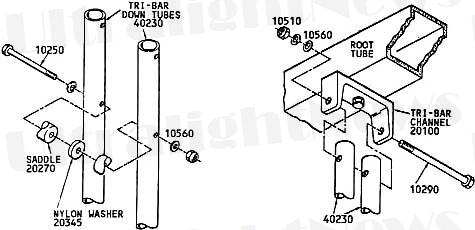

Quicksilver MX trike assembly root tube 1 A
Root Tube

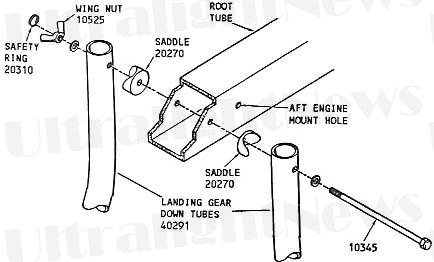

Quicksilver MX trike assembly root tube 2 B
Root Tube

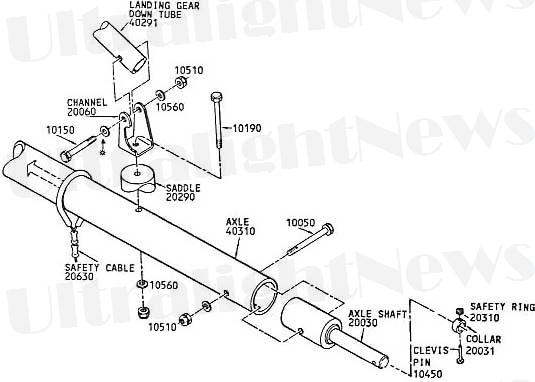

Quicksilver MX axle assembly C
Axle Assembly

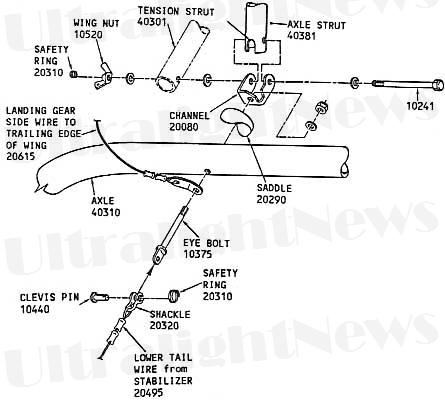

Quicksilver MX axle. D

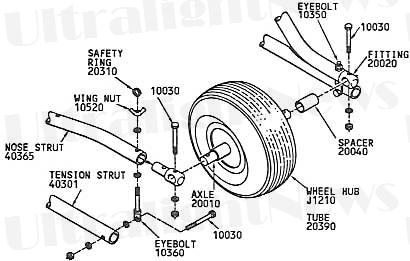

Quicksilver MX nosewheel. E
Nose Assembly
Quicksilver MX nose wheel assembly F

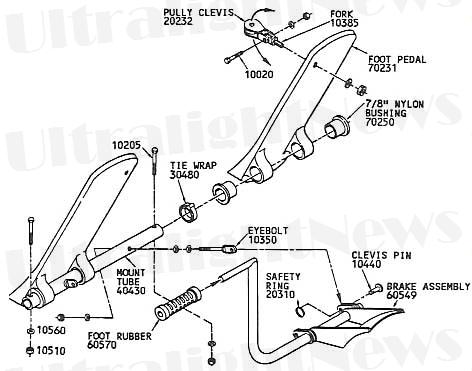

Foot Pedal Assembly
Quicksilver MX tri-bar assembly. G
Tri-bar Assembly
