The windshield is a .0625" thickness Lexan™
sheet and is precut. Lexan is the material of choice due to it's
incredible resistance to shattering (shards) in the unlikely event of
impact. The exterior is a durable High-Gloss Polyester Gel-Coat finish and
requires no further attention.
Standard color is white, custom colors
are available on request.
| |
 |
|
|

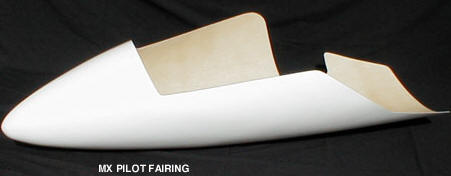

PE150 Pilot Fairing only
$160.00 |
|
|
|
|
| |
|
|
| |
 |
|
|
PE150C Pilot Fairing Assembly kit
(A) $287.00 |
|
|
|
|
| |
|
|
| |
 |
|
|
PE151 Pilot Fairing Instrument
Panel $ 55.00 |
|
|
|
|
| |
|
|
|
PE152 Pilot Fairing Windshield
only (replacement Lexan) $ 45.00 |
|
| |
|
|
| |
|
|
| |
 |
|
|

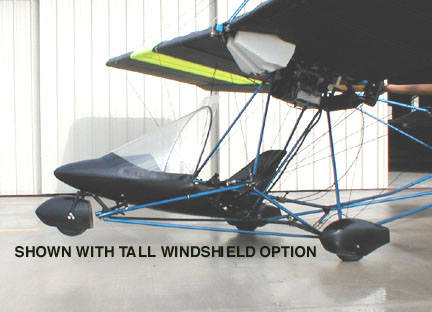

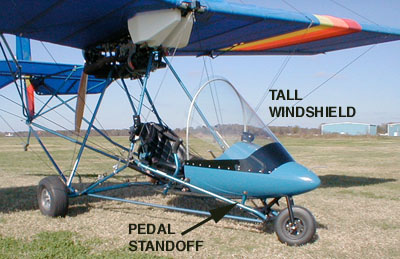

PE152A Pilot Fairing Tall
Windshield (add) (B) $ 35.00 |
|
|
|
|
| |
|
|
|
PE152T Pilot Fairing Tall Windshield
Kit (C) $ 80.00 |
|
|
|
|
| |
|
|
| |
 |
|
|
PE160 Rudder Pedal Standoff kit
(D)
$ 15.50 |
|
| |
|
| |
All prices in U.S. dollars and are subject to change without notice |
|
| |
|
|
| |
 |
|
| |
Bubble for two place MX $450.00 U.S.
Bubble, 2 Place Sport2 S $450.00 U.S. |
|
| |
|
|
| |
 Construction
is simple. 1/2" X .035 alum. tubing makes up the frame. 1/16" clear
lexan is the cover.
The whole thing is attached to the airframe using heavy duty
tie-straps.
The Bubble kit has been pre-drilled. This is done by us building
the bubble on our jig then disassembled and packaged for UPS shipping.
Work by the customer consist of "popping" about 100 rivets and
drilling two 1-1/2" dia. holes for the steering rods if used.
Added weight is approx. 15 lbs. which is usually welcomed on most
Sports and Sprints.
Typically a 2 week lead time is needed prior to shipping. -
ThankYou! |
|
| |
Single place MX $415.00 U.S. |
|
| |
|
|
(A) Includes fiberglass pod, standard windshield, trim, standoffs,
mounting hardware & instructions.
(B) Adds tall windshield, support frame & instructions to PT# PE150C
(C) Tall windshield kit includes windshield, support frame, rivets,
mount hardware and instructions.
(D) Raises foot pedals approx. 3" to allow fairing to set above nose
wheel. Eliminates the need to
cut out for the nose wheel. Included with PE150C
We do not recommend cutting a hole big
enough to allow the nose wheel to occupy space in the nose of the fairing,
Instead, we'll supply a pair of standoffs which will raise the foot pedals
to allow the fairing to be mounted just above the nose wheel. These
standoffs are also used in the steerable nose wheel application.
The fairing is normally shipped as it is removed from
the mold (without any wheel cut-outs), however, being we are the
manufacturer, we can supply the fairing with the nose wheel area
already cut out, see information below. You'll need to drill the holes to
attach the windshield and the holes (6) for the mounting hardware.
NOTE: CAN BE SHIPPED BY UPS as oversize package
|
