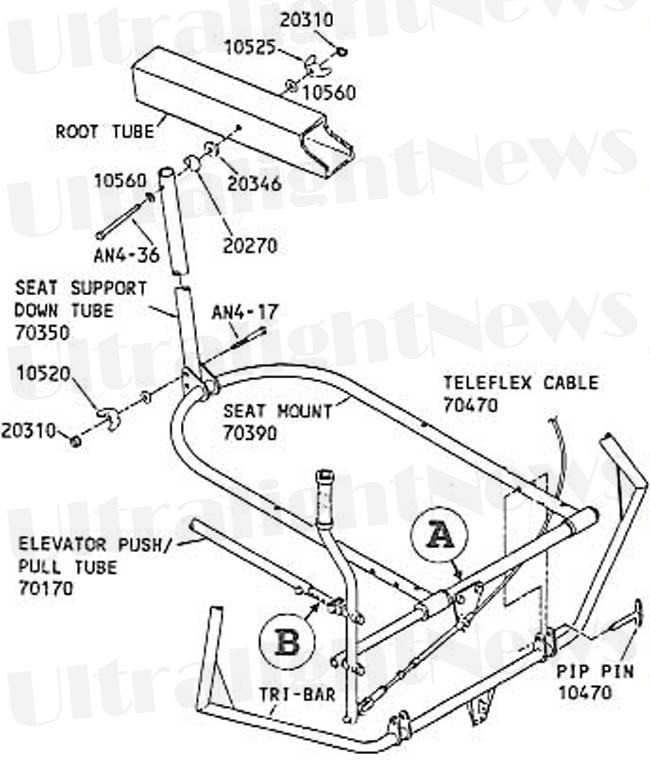

Quicksilver MX seat and, Quicksilver MX control stick assembly
|
|
| Because of constant price changes from suppliers it is difficult
to provide up to date pricing on the internet for Quicksilver parts.
If you would like a quote on prices select the product(s) you require,
and then check out, and we will email you a quote with the latest
pricing, and shipping charges. |
|
| There is a charge for the price quote which is refundable with an
order. |
|
| AN4-36 |
AN4 36 bolt |
|
| AN4 nut |
AN4 nut |
|
| AN4 washer |
AN 4 washer |
|
| 20346 |
Washer, Nylon 1" X 1/4" |
|
| 20270 |
Saddle, 1" X 1/8" |
|
| 70350 |
Tube, Seat Supt Down Xcpt MXS |
|
| AN4-17 |
AN4-17 bolt |
|
| 70390 |
MX seat mount tube |
|
| 70470 |
Cable, Control , 14' MX |
|
| 70170 |
Tube, P/P Elev. MX/MXL/MXS |
|

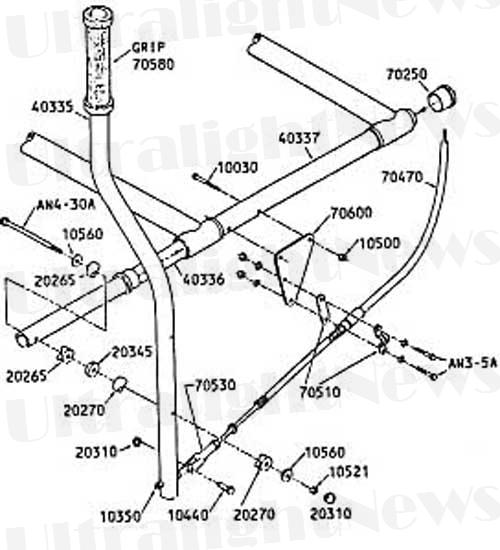

| A |
|
|
| 70580 |
Grip, Control Stick |
|
| 40335 |
Stick, Control MX, MXII |
|
| 70250 |
Bushing, Tube 7/8 Inch |
|
| 40337 |
Spacer, Stick Attach, MX/L/H/S |
|
| 70600 |
Bracket, Teleflex Attach Brkt. |
|
| AN3-5A |
AN3 5A bolt |
|
| AN3 washer |
AN3 washer |
|
| AN3 nut |
AN3 nut |
|
| AN4 30A |
AN4 30A bolt |
|
| 20265 |
Saddle, 7/8" X .25" X .15" |
|
| 20345 |
Washer, Nylon 1" X 1/8" |
|
| 20270 |
Saddle, 1" X 1/8" |
|
| 70530 |
Teleflex Clevis Rod End 3/16 |
|

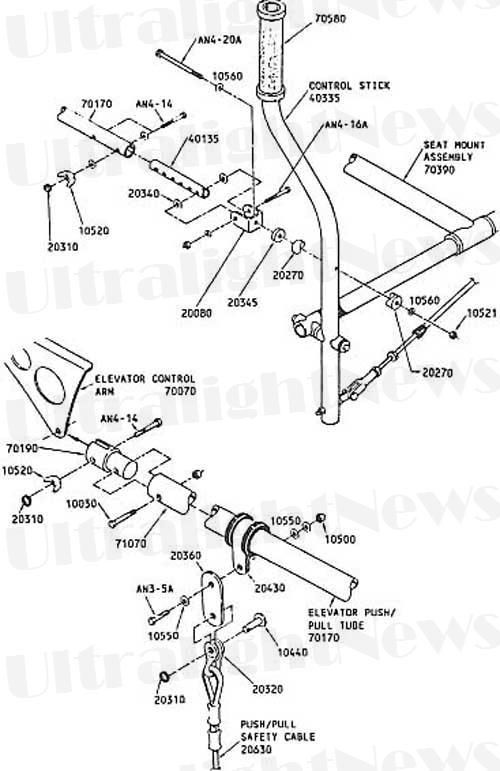

| B |
|
|
| 70580 |
Grip, Control Stick |
|
| AN4 20A |
AN4 20A bolt |
|
| AN4 nut |
AN 4 nut |
|
| AN 4 washer |
AN 4 washer |
|
| 40335 |
Stick, Control MX, MXII |
|
| 70170 |
Tube, P/P Elev. MX/MXL/MXS |
|
| 40135 |
Tube, Elev Adjust, MX/MXL/MXS |
|
| 20340 |
Washer, Nylon 5/8" X 1/16" |
|
| 20080 |
Channel, 1 Inch Formed |
|
| 70070 |
Arm, Elevator Control |
|
| AN4 14 |
AN4-14 bolt |
|
| 70190 |
Fitting, Clevis, Elev. Tube |
|
| 70170 |
Tube, P/P Elev. MX/MXL/MXS |
|
| 20320 |
Shackle, USE AN115-21 |
|
| 20630 |
Cable, Elev P/P Safety, MX |
|
| |
|
| |
|
|
|
|
|
|
|
