Quicksilver MX root tube, Quicksilver MX root tube parts, Quicksilver
MX root tube parts diagrams.
|
|
|
|
|
|
|
|
|
|
|
|
|
 |
|
|

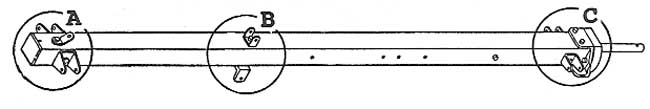

Quicksilver MX root tube parts diagrams.
|
|
Because of constant price changes from suppliers it is difficult
to provide up to date pricing on the internet for Quicksilver parts.
If you would like a quote on prices select the product(s) you require,
and then check out, and we will email you a quote with the latest
pricing, and shipping charges. |
|
| There is a charge for the price quote which is refundable with an
order. |
|

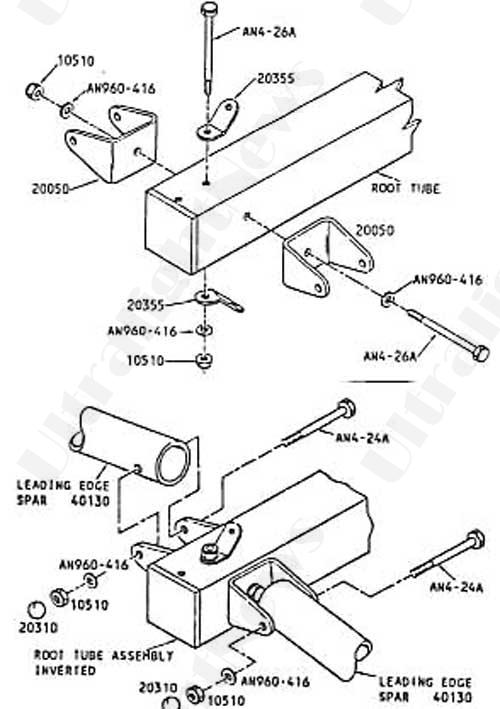

| A |
|
|
| AN4 26A |
AN 26A bolt |
|
| AN 4 nut |
AN 4 nut |
|
| AN 4 washer |
AN 4 washer |
|
| 20355 |
Tang, 75 Degree |
|
| 20050 |
Channel, 1-3/4 Inch Extruded |
|
| 40130 |
Spar, Wing LE MX/Y/DQ/QE |
|
| AN4 24A |
AN4 24A bolt |
|

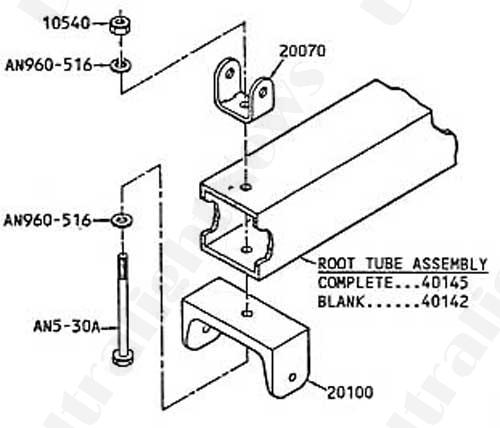

| B |
|
|
| 20070 |
Channel, 1 Inch |
|
| 40145 |
Tube, Root, Assy, Y/DQ/QE/MX |
|
| 40142 |
Tube, Root Blank All MX |
|
| 20100 |
Channel, Tri-Bar |
|
| AN5 30A |
AN5 30A bolt |
|
| AN5 nut |
AN 5 nut |
|
| AN5 washer |
AN 5 washer |
|

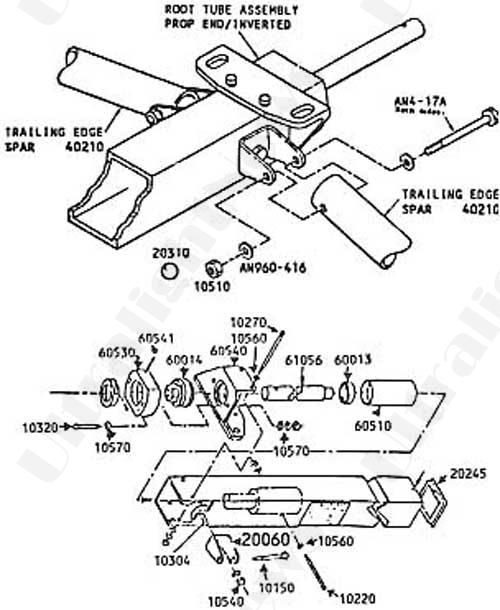

| C |
|
|
| AN4 17A |
AN4 17A bolt |
|
| AN4 nut |
AN 4 nut |
|
| AN4 washer |
AN 4 washer |
|
| 60530 |
Flange, Prop Bearing |
|
| 60541 |
Fitting, Grease 5010 |
|
| 60014 |
Bearing, Outer Root tube |
|
| 60540 |
Bracket, Prop Bearing |
|
| 61056 |
Prop Shaft LW |
|
| 60013 |
Bearing, Inner Root tube |
|
| 60510 |
Carrier, Pilot Bearing |
|
| 20060 |
Channel, 1-1/8 Inch Formed |
|
| 20245 |
Cap, Tube 2 InchSqr.X.125 |
|
| |
|
| |
|
|
|
|
|
|
|
