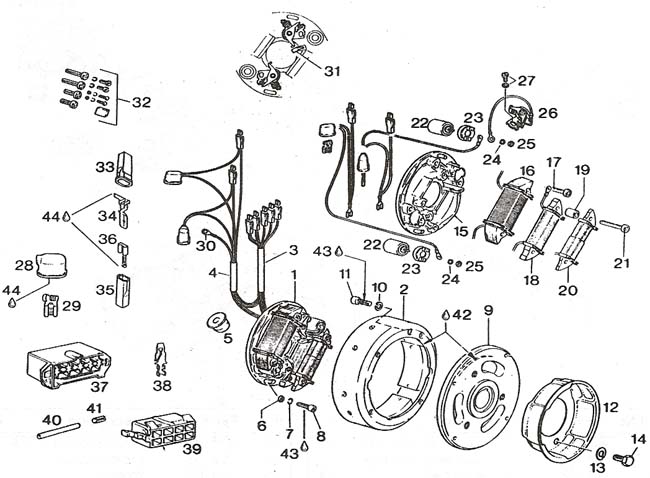

Rotax 532 ignition, Rotax 532 Bosch points ignition parts.
Illustration No. Part No.

Description

 Qty
1-4 994 807 Magneto generator 12V 140W 1
1 993 725 Stator plate assembly 12V 140W 1
2 993 500 Magneto ring along 1
3 260 437 Protection hose 150mm 1
4 960 203 Protection hose 90mm 1
5 960 285 Cable grommet 20.5 1
6 807 800 Washer A5.5 2
7 945 750 Lock washer A5 2
8 840 515 Allen screw M5x18, 6NM 2
9 866 105 Magneto housing assembly. 3549852+ 1
10 945 751 Lock washer A6 4
11 840 370 Allen screw M6x11.5 4
12 852 322 Starting pulley 1
13 945 752 Lock washer A8 3
14 940 580 Hex screw M8x16, 22NM 3
15 865 980 Stator plate, 12V 140W 1
16 865 812 Lighting coil 110W 1
17 840 970 Allen screw M5x28 2
18 865 750 Generator coil 1
19 847 240 Distance sleeve 5.4/10/11 2
20 865 822 Lighting coil, 30W 1
21 241 415 Combined screw M5x32 2
22-25 964 219 Condenser set 2
23 860 130 Capacitor cap 2
24 245 090 Lock washer A3 2
25 942 171 Hex nut M3 2
26 983 343 Contact breaker set 2
27 241 215 Combined screw M4x10 2
28 960 590 Rubber cap 2
29 864 261 Faston connector 6.3x.8 2
30 964 055 Cable shoe, M5 2
31 265 815 Lubricating wick 2
32 964 212 Fastening parts set 2
33 960 970 Protection cap 7
34 866 300 Faston connector 7
35 960 719 Protection cap 7
36 864 011 Faston connector 6.3x.8 7
37 866 025 Connector housing 1
38 866 305 Faston connector 6.3x.8 8
39 866 010 Connector housing 1
