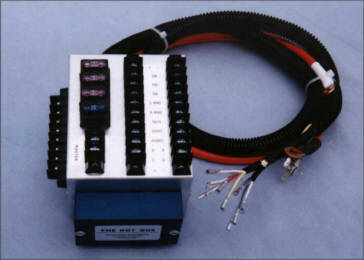

Hot Box
|
|
This is a complete electrical system intended for
use with an electric starter equipped engine. The box contains a heavy
duty regulator, starter solenoid, custom length cables, labeled
terminal strips, a fuse panel and many more features.
If the aircraft you are building has a battery and
an electric starter, then the HOT BOX
is for you. Then the task of wiring your
homebuilt aircraft as simple as 1-2-3.
|
|
1.Mount the HOT BOX.
2. Connect color coded wires and cables to the
engine, battery and starter.
3. Connect two wires from each accessory or
accessory switch to the clearly labeled terminal strips.
The HOT BOX is a
self-contained primary wiring system. It has everything needed to
connect your starter and lighting coil equipped engine
electrically with the rest of your aircraft. |
- All of these features are built in:
-
Fused top quality rectifier/regulator to charge the
aircraft battery.
- A four position auto blade type fuse block
supplying three noise filtered 12 volt taps.
- Heavy duty solenoid for the electric
start.
- A special Hobbs hour meter circuit that will only
work while the engine is running.
- Never will false time be run up
because you forgot to turn off a switch.
- A color matching wiring harness, ready to plug into
the engine.
- Colored cables, ready to connect to the starter and
battery.
- Nine pairs of labeled screw down terminals for
connecting external instruments, switches and electrical
equipment.
|
|
Hot Box $240.00 U.S. |
|
|
|
|
|
|
|
