Double Magnum strobe light 12 Volt DC strobe light
|
|
DOUBLE DUAL MAGNUM Models
The DOUBLE DUAL MAGNUM STROBE Driver is available in two
models, the DDM 12 volt DC model and the SDDM smart model.
The SMART Model simply means it can be powered by AC or DC
like the Single Magnum Smart Strobe mentioned earlier, other
than that there is no difference in operation. The 12 volt
model is powered by the 12 volt electrical system of your
aircraft.
As a standard, both models come equipped with the Standard
STREAMLINE strobe head. While drawing an average of less
than 2 Amps it fires the strobe bulb in a rapid double flash
on one head and then the other in an alternating pattern.
The first flash catches the eye and the second identifies
your position. Total flash rate is 74 per min.
Both of these strobe systems are available with the ROUND
FRESNEL, STANDARD STREAMLINE or The COMBO strobe heads.
|
|
| The driver
measures 4 1/2 x 3 1/2 x 1 5/8 inches and weighs only 10 oz.
Mounting hardware, round tube adapter plates and wire is
included. |
|
DDM-SL Double Dual Magnum (12 VDC)
Strobe Light w/Standard Streamlined Heads $228.00 U.S.
DDM with STANDARD STREAMLINE heads, 50’ of 3 conductor wire, adapter
plates, plugs, pins, and installation hardware. |
|
|
|
|
DDM-RH
Double Dual Magnum (12 VDC)
Strobe Light w/2 ROUND FRESNEL Heads $228.00 U.S.
|
|
|
|
|
DDM-SLC Double Dual Magnum (12 VDC)
Strobe Light w/2 Streamlined Combo Heads $388.00 U.S.
DDM with 2 STREAMLINE COMBO heads, 50’ of 5 conductor shielded wire,
adapter plates, plugs, pins, and installation hardware. |
|
|
|
DOUBLE DUAL MAGNUM
Smart Strobe Light
The Smart
Strobe model is the same as the 12
VDC model except it will operate on AC (lighting coil) or DC (battery)
power.
Comes equipped with our specially made STREAMLINED wing tip mounted heads.
While
drawing an average of less than 2 Amps from your 12 volt aircraft battery.
It fires a rapid double flash on one head and then the other in an
alternating pattern. The first catches the eye and the second
identifies your position.
Total flash rate is 66 per minute.
The driver
measures 4 1/2 x 3 1/2 x 1 5/8 inches and weighs only 10.5 oz.
Mounting hardware, round tube adapter plates and wire is
included.
|
|
SDDM-SL DOUBLE DUAL MAGNUM
Smart Strobe Light w/Streamlined heads $248.00 U.S.
SDDM with STANDARD STREAMLINE heads, 50’
of 3 conductor wire, adapter plates, plugs, pins, and installation
hardware |
|
|
|
|
SDDM-RH DOUBLE DUAL MAGNUM
Smart Strobe Light w/2
ROUND FRESNEL Heads $248.00 U.S.
|
|
|
|
|
SDDM-SLC DOUBLE DUAL MAGNUM
Smart Strobe Light w/2
Streamlined Combo Heads
$408.00 U.S.
SDDM with 2 STREAMLINE COMBO heads, 50’ of 5 conductor shielded
wire, adapter plates, plugs, pins, and installation hardware. |
|
|
|
|
|

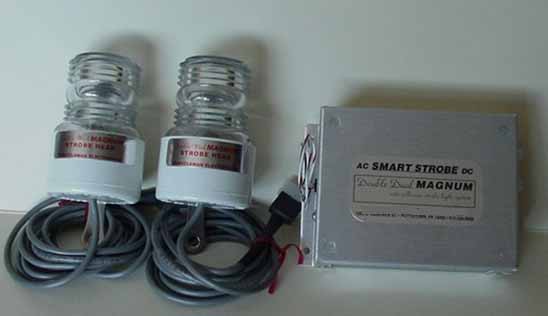

Standard strobe light heads. |

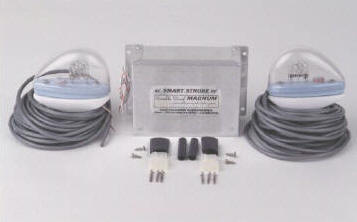

Streamlined
strobe light heads |
|

Streamlined
Combo
strobe light heads
|
|
| |
|
|
|
