Rotax 277 "A" gear drive fan cooled engine Drive shaft offset towards engine base, for FAN-COOLED engine installation spark plug up (SS) or down (HS)
Click here to return to Rotax 277 main index

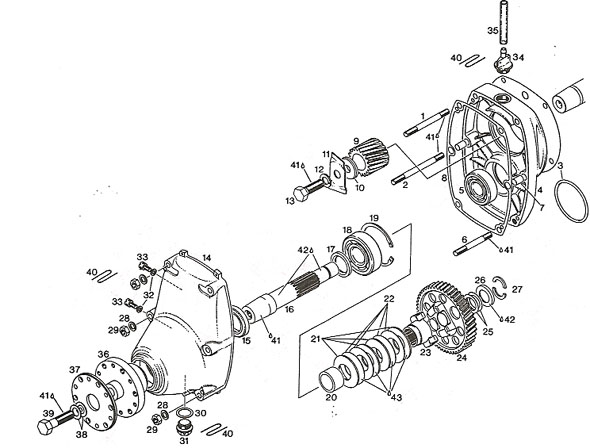

SS Rotax 277 fan cooled engine A drive SS
1 841 891 Stud M8x84 2
2 841 911 Stud M8x103.5 2
3 930 620 Gasket type A up to 3429978 1
3 850 360 O-ring from 3429979 1
4 910 861 Gear housing up to 3429978 1
4 910 862 Gear housing from 3429979 1
5 932 091 Ball bearing 1
6 841 881 Stud M8x75 2
7 929 670 Dowel 10x13 2
8 930 533 Gasket 1
9 834 010 Drive gear 19T Use 886 201 1
10 827 785 Washer 13/35/5 1
11 924 300 Oil slinger 1
12 945 766 Lock washer VHV 13 1
13 841 651 Hex screw 1
14 910 371 Gear cover 1
15 850 050 Oil seal 1
16 937 985 Prop shaft 1
17 827 850 Distance ring 1
18 932 820 Ball bearing 1
19 445 070 Snap ring 1
20 847 500 Distance sleeve 1
21 939 020 Spring washer 4
22 939 025 Use 939 020 4
23 958 760 Dog hub 1
24 834 040 Dog hear 49T Use 886 200 1
25 944 461 Shim---.3 As required
944 462 Shim---.5 As required
944 465 Shim---.15 As required
944 466 Shim---1.0 As required
26 827 840 Angular ring 1
27 827 860 Ring half 2
28 945 752 Lock washer A8 6
29 242 206 Hex nut M8 6
30 552 280 Gasket ring 1
31 840 270 Magnetic plug 1
32 830 890 Gasket ring 2
33 841 781 Capstan screw M6x10 2
34 941 110 Air vent screw 1
35 974 532 Vent line 70mm 1
36 958 750 Prop hub 1
36 958 755 Prop hub for Falcon 1
37 827 830 Prop washer 1
38 845 340 Spring washer B 12 2
39 841 731 Hex screw M12x1.5 1
40 Safety wire As required
41 899 785 Loctite 222, violet As required
42 PSAS Anti-seize As required
43 BP Energrease As required

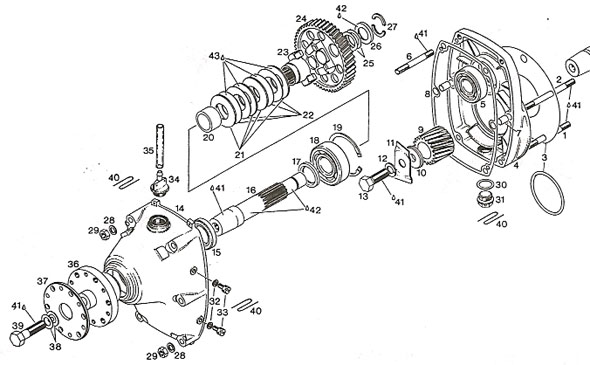

HS Rotax 277 fan cooled engine A drive HS
