Rotax 912 rad, Rotax 912S radiator, expansion tank and overflow tank.

Light Sport & Ultralight Aircraft Information.

Click here For
Light Sport & Ultralight Aircraft Information.

Click to visit Excalibur Aircraft.

When was the last time you did maintenance on your K & N Airfilter? Is you filter safety wired? Click here to see how to clean and safety wire your airfilter!

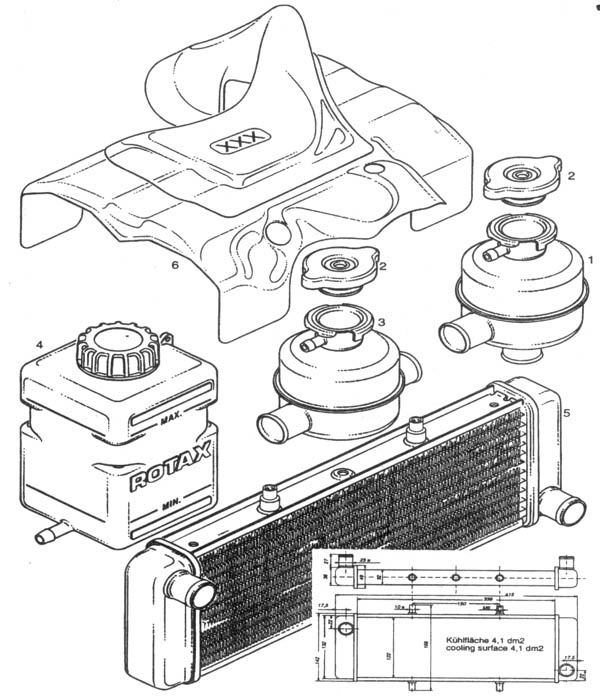

Illustration Number Part#


1-2 922 312 Expansion tank assembly, 90 degree 1
2 922 075 Radiator cap w/gasket, .9 bar 1
2-3 922 317 Expansion tank assembly, 180 degree 1
4 922 325 Overflow bottle w/cap 1
5 995 697 Radiator 1
6 975 795 Cooling air baffle 1a
975 796 Cooling air baffle 1b
a Short version, marked with serial#
b Marked with serial#
