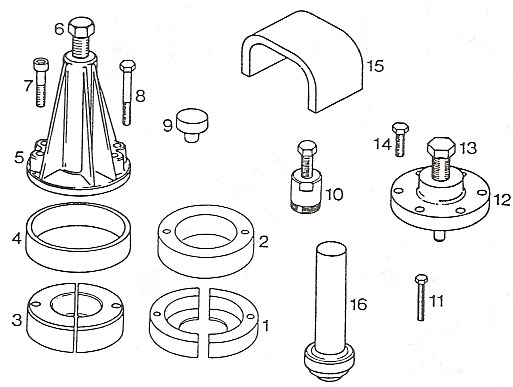

Rotax 277 A gear box tools

Rotax 277 gear box tools
1 876 890 Ring half, drive gear puller 2

         52.50

2 876 560 Distance ring, drive gear puller 1
3 876 330 Ring half for ball bearing 2
4 977 480 Ring for puller 1


42.95

5-6 876 298 Puller assembly for bearing 1


115.00

6 940 755 Hex screw 1

 38.10

7 840 681 Cylinder screw, M8x40 2

 1.80

8 841 201 Hex screw M8x70, for drive gear puller 2

 2.75

9 876 552 Protection mushroom 1

 3.50

10 276 808 Gear puller for internal threads 1

 78.80

11 241 475 Hex screw
12-13 876 865 Puller assembly for prop hub 1

 91.90

13 876 870 Hex screw M16x1.5 1

 22.30

14 940 480 Hex screw M8x30
15 876 880 Mounting bracket 1

19.75

16 876 666 Oil seal insertion jig
LT242 Loctite 242, blue 1
LT680 Loctite 680, green 1
995 780 Gear drive gasket set 1

55.75

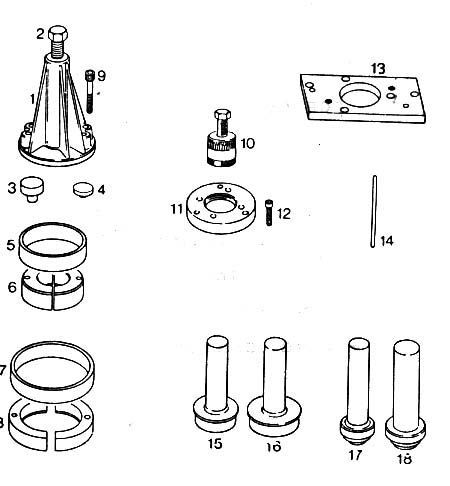

Rotax 277 special tools


1

876 296

puller assembly

1

2

940 755

hex. screw
M16 x 1,5

1

3

876 552

protection mushroom for crankshaft, p.t.o. side

1

4

876 557

protection mushroom for crankshaft, magneto side

1

5

977 480

ring for puller

1

6

276 020

ring half for ball bearing

2

7

977 490

ring

1

8

977 470

ring half for ball bearing

2

9

840 680

cylinder screw M8 x 40

2

10

876 065

puller assy. M42 x 1,5 for magneto housing

1

11

876 655

puller ring

1

12

840 860

cylinder screw M6. x 25

2

13

876 705

puller plate

1

14

876 640

fixation bolt

1

15

276 930

jig to mount crankcase ring

1

16

276 940

jig to mount crankcase ring

1

17

277 875

jig to mount oil seal

1

18

876 660

jig to mount oil seal

1

Further tools required

Torque wrench - up to 100 Nm (880 in.lbs)

insert 27 mm fitting torque wrench

fork wrench 22 mm

socket wrench 8 mm

rubber hammer

hexagon socket screw key 4 mm

hexagon socket screw key 5 mm.

hexagon socket screw key 6 mm

screwdriver

Philips blade screwdriver

circlip pliers
