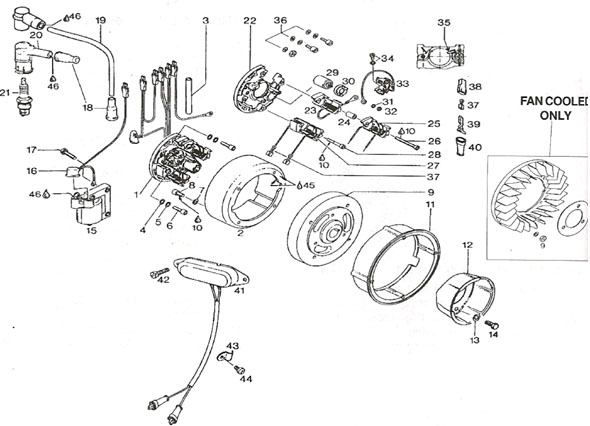

Rotax 277 fan cooled magneto generator
Click here to return to Rotax 277 main index
1-2 292 701 Magneto generator 12V 75/23W 1
1 992 585 Armature plate assembly 1
2 983 864 Magneto flywheel 1
3 960 182 Protection hose 60mm 1
4 827 800 Washer A 5.5 3
945 751 Lock washer A6, fan cooled only 8
5 945 750 Lock washer A5 3
6 840 515 Allen screw M5x18 3
7 945 761 Lock washer A6 4
8 840 370 Allen screw M6x11.5 4
866 430 Fan, fan cooled only 1
9 866 417 Use 866 418 1
242 211 Hex nut M6, fan cooled only 3
10 LT222 Loctite 222, violet As required
827 285 Spacer plate, fan cooled only 1
11 910 340 Adaptor ring 1
12 752 323 Starting pulley, free air 1
852 311 Starting pulley, fan cooled only 1
13 945 751 Lock washer A6 3
14 240 910 Hex screw M6x14 3
15 984 555 Ignition coil 1
16 864 272 Mass cable assembly 1
17 841 550 Taptite screw M5x22 3
18 960 550 Protection cap 1
19 PLGWIRE Ignition cable, 390mm 1
20 866 705 Spark plug connector 1
983 409 No longer available 1
21 B8ES Spark plug 1
22 865 910 Armature plate 1
24 847 240 Distance sleeve 2
25 865 900 Lighting coil 23W 1
26 241 415 Combined screw M5x32 2
27 865 026 Lighting coil 75W 1
28 640 095 Locking screw M5x25 2
29-30 964 217 Condenser w/cap 1
30 860 130 Condenser cap 1
31 245 090 Lock washer A3 1
32 942 171 Hex nut M3 1
33 983 343 Contact breaker 1
34 241 215 Combined screw M4x10 1
35 265 815 Lubricating wick 1
36 561 5031 Fastening parts set 1
37 864 011 Faston connector 6
38 960 719 Protection cap 6
39 866 300 Faston connector 4
40 960 970 Protection cap 4
41 866 572 Ignition damping box 1
42 841 680 Taptite screw M5x8 2
43 251 890 Cable clamp 1
44 240 190 Taptite screw, M4x6 1
45 LT680 Loctite 680, green As required
46 BP Energrease As required
Rotax 277 fan cooled
magneto generator 12V 75/23W
