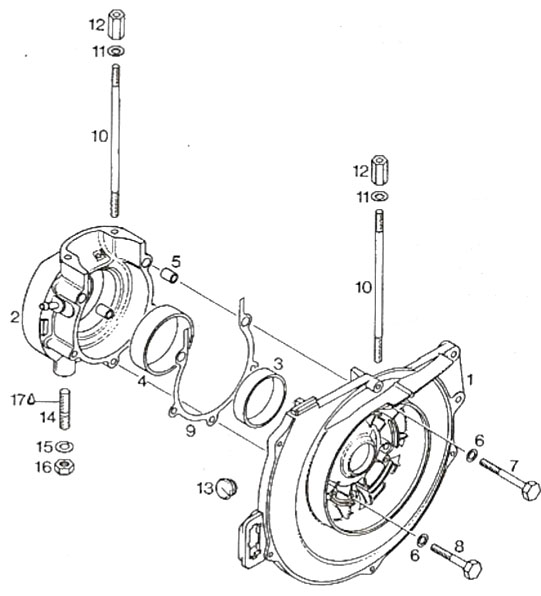

Rotax 277 crankcase fan cooled engine

Click here to return to Rotax 277 main index
1-8 995 293 Fan-cooled/crankcase, to 3429978 1
995 653 Fan-cooled/crankcase, 3429979+ 1
995 299 Free air-cooled/crankcase assembly 1
3 960 765 Ring, crankcase, magneto side 1
4 827 820 Ring, crankcase, PTO side 1
5 229 150 Dowel tube 11.8x15 2
6 945 752 Lock washer A8 5
7 841 311 Hex screw M8x75 2
8 240 320 Hex screw M8x55 3
9 850 060 Gasket, crankcase 1
10 840 620 Stud M8x175 4
11 250 311 Washer 8.4 4
12 842 010 Distance nut M8x27.5 4
13 960 285 Cable grommet 20.5 1
14 940 190 Stud M10x29 4
14 940 700 Alternative stud M10x42 4
15 954 752 Lock washer A10 4
16 242 090 Hex nut M10 4
17 LT222 Loctite 222, violet As required

Rotax 277 crankcase
Rotax 277 crankcase fan cooled engine
