Rotax dual radiator, Rotax dual radiators, Rotax dual radiator system for Rotax liquid cooled aircraft engines, spark
plug UP configuration.
When was the last time you did maintenance on your K & N Airfilter? Is you filter safety wired? Click here to see how to clean and safety wire your airfilter!

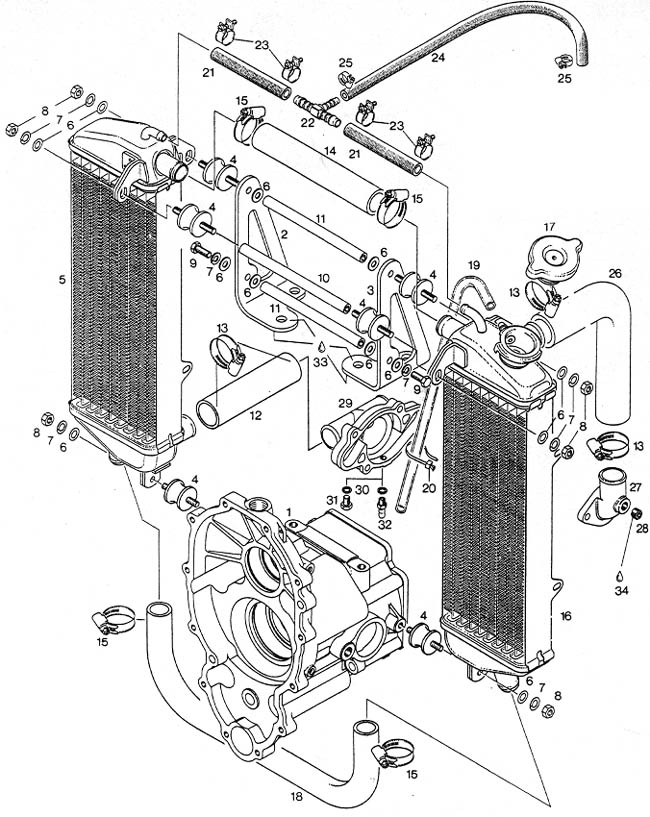

Rotax dual radiator system for plugs UP installation.
# Part # Description Qty Req.
1
810 011 Gear
Box Housing "C"
1
973.00
1
810 350 Gear
Box Housing "E"
1
1247.50
2-26
881 433
Radiator Set
1
886.00
2
851 122
Bracket, right
1
55.75
3
851 127
Bracket, Left
1
55.75
4
260 657
Rubber Buffer
6
21.25
5
995 914
Radiator w/o Filler Cap
1
453.00
6
244 211
Washer
12
.25
7
945 751 Lockwasher
8
.25
8
242 211 Nut
6mm
6
.50
9
241 186 Screw
6 x16
2
.50
10
847 600
Distance Tube
1
36.50
11
847 605
Distance Tube
2
36.50
12
922 114
Connecting Hose 110mm
1
25.75
13
951 880 Clamp
20-32
4
5.00
14
922 124
Connecting Hose 150mm
1
16.75
15
951 870 Clamp
16-25
4
5.00
16
995 919 Radiator w/FillerCap
1
453.00
17
922 075
Radiator Cap w/ gasket
1
47.75
18
922 190 Water
Tube
1
73.00
19
974 542 Fuel
Tube 250mm
1
5.00
20
866 710 Clamp
20mm
1
1.00
21
956 262
Radiator Hose 95mm
2
6.50
22
974 839
Reduction T-piece
1
13.50
23
951 240 Clamp
12
4
4.00
24
860 304 Low
Pressure Hose 365mm
1
18.00
25
951 890 Clamp
7-11
2
7.00
26
922 381 Bent
Hose 25190
1
59.00
27
922 061 Bent
Outlet Socket
1
43.50
28
240 480 Plug
Screw 1/8-27 npt
1
5.00
29
922 501 Water
Pump Housing
1
155.00
30
830 890
Gasket ring
2
1.00
31
841 580 Screw
6x8
2
.50
32
940 558 Nipple
1
15.50
33 Silastic
732 RTV
req.
