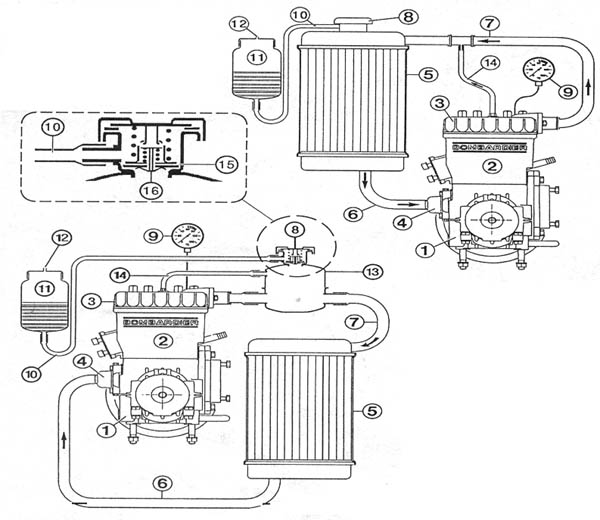

Rotax upright radiator installation

UPRIGHT INSTALLATION

1) crankcase
2) cylinder

3) cylinder head

4)
water pump
5) radiator

6) tube from radiator to water pump

7) tube from cylinder head to radiator

8) radiator screw cap, with excess pressure valve and return valve

9) temperature gauge for
cooling water

10) overflow tube

11) overflow reservoir


12) reservoir venting


13) expansion tank

14) cylinder head venting tube

15) excess pressure valve



16) return valve



Rotax recommends a 50/50 mix of silicant FREE anti-freeze to distilled water for the Rotax 532, Rotax 582 and Rotax 618 two stroke engines.



Rotax 582 - 618 upright radiator installation drawing.
