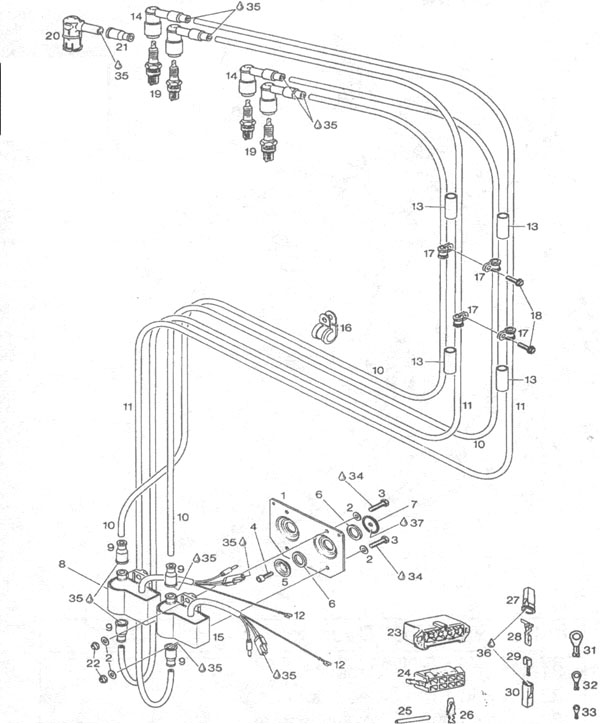

Rotax 503 Ducati ignition system

Rotax 503 Ducati ignition system
# Part # Description Qty Req.
1 851 040 Mounting plate 1
2 244 211 Washer 6.4 8
3 240 036 Hex screw M6x25, 5NM 4
4 241 236 Allen screw M6x16 2
5 827 815 Distance cap 2
6 960 865 Rubber washer 18/26/3 4
7 944 090 Shim 2
8-14 966 462 Electronic box assy.  1
9 960 550 Protection cap 4
10 864 296 Ignition cable 560mm  2
11 965 524 Ignition cable 875mm 2
12 864 011 Faston connector 6.3x.6 2
13 830 962 Protection hose 12x16x40 4
14 866 705 Spark plug cap  4
15 965 427 Electronic box assy. 1
16 851 100 Cable clamp18 1
17 853 412 Cable clamp 8/M6  4
18 941 250 Taptite screw
M6x20, 8NM 		2
19 897 050 B8ES Spark plug, 4
20 983 409 No longer available 4
21 960 550 Protection cap  4
22 842 042 Lock nut M6, 8NM 4
23 866 025 Connector housing 1
24 866 010 Connector housing  1
25 860 621 Shrink hose 40mm As Req.
26 866 305 Faston connector 6.3x.8 5
27 960 970 Protection cap As Req.
28 866 300 Faston connector 6.3x.8  As Req.
29 864 011 Faston connector 6.3x.8 As Req.
30 960 719 Protection cap  As Req.
31 964 055 Cable terminal M5 As Req.
32 965 700 Cable shoe M4  As Req.
33 965 706 Cable shoe M3  As Req.
34 899 788 Loctite 609, green As Req.
35 BP Energrease . As Req
36 297 386 Silastic 732 RTV As Req.
37 Contact adhesive As Req.
