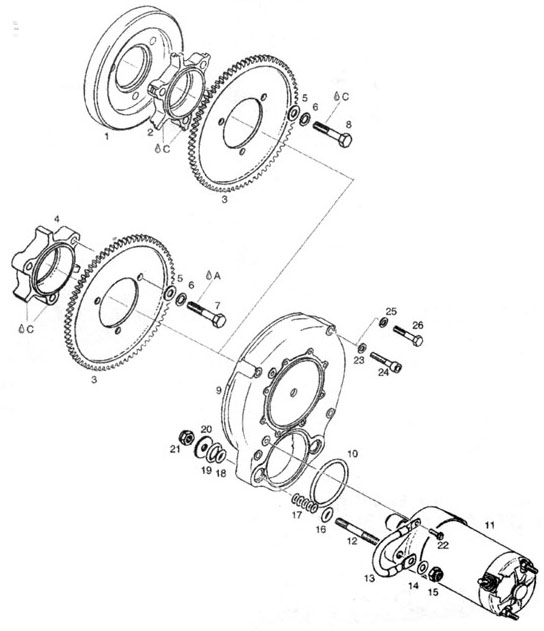

Rotax 582 electric starter main body parts

Rotax 582 electric starter main body parts
582 Parts Index 582 Index Main index
# Part # Description

Qty
Req.
1 965 497 Hydro Damper Assembly 1A
2 852 378 Starter Adapter 1B
3 834 050 Starter gear 61 T 1
4 852 370 Starter Gear Adapter   1
5 250 311 Washer 8,4 DIN 125  3
6 945 752 Lock Washer A8   3
7 940 490 Hex Screw M8x35   3
9-22 995 920 Electric Starter Set  1
9 910 731 Starter Cover  1
10 850 390 O-Ring 60-4  1
11 995 430 Electric Starter Assembly  1
12 841 950 Stud M8x43/23  2
13 966 030 Mass Cable 80 MM Assembly   1
14 944 038 Washer 8,4/14/1  1
15 942 030 Lock Nut M8  2
16 850 585 0 Ring 8x5 2
17 230 260 0 Ring 6x3 10
18 850 580 0 Ring 8x4 2
19 850 590 0 Ring 16-4 2
20 827 910 Washer 8,2/26,3/2   2
21 942 030 Lock Nut M8   2
22 841 680 Taptite Screw M5x8   1
23 945 751 Lock Washer A6
DIN 128 		4
24 241 816 Allen Screw M6x40
DIN 912  		4
  932-851 Starter Relay Assembly

Also see Electric start troubleshooting
