Rotax 377 Rotax 447 Bosch points ignition system

Bosch ignition, Rotax 377 Bosch ignition system, Rotax 447 Bosch points ignition, Rotax points, Rotax condensers.

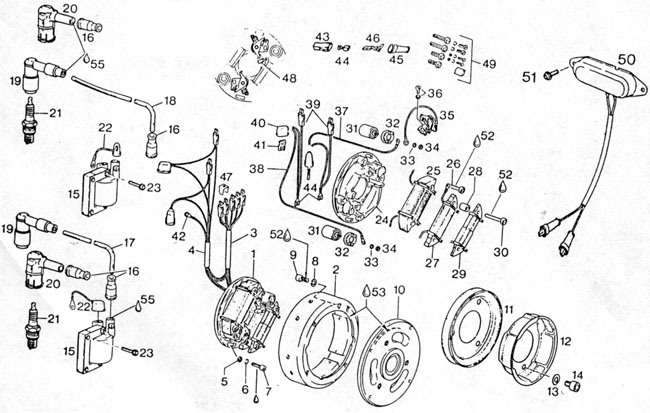

# Part #

Description

Qty Req.

1-4 994 807  Magneto Generator 1
1 993 725   Stator Plate Assy  1
2 993 500   Magneto Ring Alone  1
3 960 203   Protection Hose  1
4 260 437   Protection Hose 1
5 827 800   Washer 2
6 945 750   Lock Washer  2
7 840 515   Allen Screw 5x 18 2
8 945 751   Lock Washer  4
9 840 370  Allen Screw 4
10 866 320   Magneto Housing  1
11 980 486   V Belt pulley 1
12 852 412   Starting Pulley 1
13 845 310   Lock Washer 3
14 841 520   Allen screw 3
15 984 555  Ignition coil  2
16 960 550 Protection Cap 2
17 965 158   Protection Cable  1
18 965 158  Ignition Cable 265mm 1
19 866 705 Spark Plug Connector 2
20 983 409 Spark Plug Connector 2
21 B8ES   Spark Plug 2
22 864 271   Mass Cable Assy 2
23 841 550   Taptite screws  7
24 865 980   Stator Plate 1
25 865 812   Lighting Coil 110w 1
26 240 975   Allen Screw 5x28  2
27 865 750   Generator Coil 1
28 847 240   Distance Sleeve  2
29 865 822   Lighting Coil 30w 1
30 241 415   Combined Screw 2
31-34 964 219   Capacitor Set  2
32 860 130   Capacitor Cap 2
33 245 090   Lock Washer  2
34 942 171   Hex Nut 2
35 983 343   Contact Breaker Set  2
36 241 215 Combined Screw 4x 10  2
37 864 970   Generator Cable Assy  1
38 864 769   Generator Cable Assy  1
39 864 611   Shorting Cable Assy  2
40 960 590   Rubber Cap  2
41 864 261   Faston Connector 2
42 964 054  Faston Connector 2
43 960 719   Protection Cap 7
44 964 011   Faston Connector 7
45 960 970   Protection Cap  7
46 866 300   Faston Connector 7
47 265 815   Lubricating Wick  1
48 964 212   Fastening Parts Set 1
49 866 572   Ignition Damping Box  1
50 841 680   Taptite Screw 5x 8  2
51 260 412   Shrink Tube 30mm  1
52 264 530   Splice Connector
53 866 025   Connector Housing  1
54 866 305   Faston Connector  8
55 866 010  Connector Housing 1
56  Loctite 221
