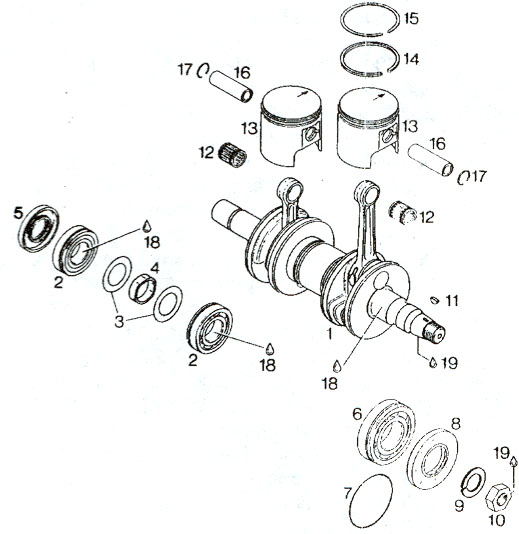

Rotax 337, Rotax 447 crankshaft, pistons, rings, seals and bearings
Bosch points ignition provision 4 crankcase.

Older style 337 - 447 Rotax engines, with provision 4 crankcase, points ignition.
#
 Part #
 Description

Qty Req.


1 996 333 CRANKSHAFT ASSY
1
2 832 209 BALL BEARING, 6206, PROV-4
2
3 827 715 SHIM, 30,4/51/1 PROV-4
2
4 847 395 STOP TUBE, BALL BRNG CGE PROV-4
1
5 830 748 OIL SEAL, PTO SIDE 30X62X7/7,5 PROV-4 1
6 832 231 BALL BEARING, 6207, PROV 8
7 830 355 O-RING 49, 2-1.8
1
8 831 950 OIL SEAL, 35X72X7/8,5 PROV-8
9 945 759  LOCK WASHER A22
10 842 230 HEX NUT, M22X1,5
11 246 055 WOODRUFF KEY, 3X3,7
12 832 325 CAGELESS 31X.655 IN LONG
13 886 050 PISTON ASSY W/2 RINGS 2 67.5 MM STANDARD (447)
2
  886 051 PISTON ASSY W/2 RINGS 2 67,75 MM, 1ST OVERSIZE (447)
2
14 915 960 RECTANGULAR RING 67,5 MM 2
STANDARD (447)
2
  915 961 RECTANGULAR RING 67,75 MM 2
1ST OVERSIZE (447)
2
15 915 845 SEMI- TRAPEZE RING 67,5 MM 2 STANDARD (447)
2
  915 846 SEMI- TRAPEZE RING 67,75 MM 2 1ST OVERSIZE (447)
2
16 916 136 PISTON PIN 447
2
17 945 735 CIRCLIP 18
4
18   ANTI SEIZE
19   LOCTITE 222 VIOLET
