ENGINE TOOLS
377 THRU 618

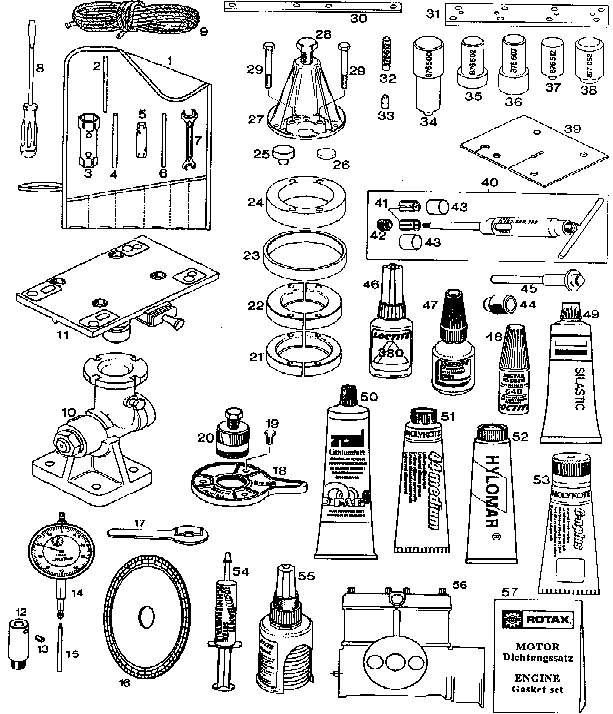

Engine Tools



Illustration Number Part#

Description

 Quantity
1 876 631 Tool kit 1
1 876 195 Tool bag 1
2 876 640 Fixation tool 1
3 876 210 Socket wrench, 21/26mm 1
4 977 420 Bolt 8x130-10 for socket wrench 1
5 876 227 Socket wrench, 10/13mm 1
6 977 425 Bolt 6x130-10 for socket wrench 1
7 276 065 Fork wrench 10x13mm 1
8 876 200 Screw driver 1
9 ROPEST Starter rope, 5.5x2110mm 1
  876 065 Puller assembly, 277 1
10-11 876 740 Trestle assembly 1
10 876 762 Trestle support assembly 1
  876 655 Puller plate, 277 1
11 876 746 Mounting plate w/detent for 277 through 618 1
  840 860 Cylinder screw M6x25, 277 3
12 876 940 Gauge adaptor 1
  976 890 Protection cap assembly, 277 1
13 841 771 Set screw M6x8 1
14 876 950 Precision dial gauge 1
15 876 945 Gauge pin 1
16 277 150 Degree disk, 532/582/618 1
17 277 905 Wrench, oil pump gear 1
18 876 080 Puller plate, 377 to 618 1
19 940 591 Hex screw M8x20, 377 to 618 3
20 876 065 Puller M42x1.5, 377 to 618 1
21 977 475 Bearing puller half 2
22 276 025 Bearing puller half 2
  276 930 Plastic ring, 277 mag 1
  876 620 Distance gauge, PTO 3/4/5 1
23 977 490 Ring for bearing puller 1
  276 940 Insertion jig, 277 PTO 1
  876 357 Fan tool, 3/4/5 1
24 876 569 Distance ring for puller 1
  277 875 Stamp to mount oil seal, 277 1
  876 171 Cylinder aligning tool, 3/4/5 1
25 876 552 Protection mushroom, PTO side 1
  876 660 Stamp to mount oil seal, 277 1
  240 276 Hex screw M8x32
26 876 557 Protection mushroom, mag side 1
27-28 877 635 Puller assembly 1
28 940 755 Hex screw, M16x1.5x150 1
29 841 201 Hex screw, M8x70 4
30 876 572 Cylinder aligning tool 532/582 1
31 876 904 Cylinder aligning tool, exhaust 1
32 876 612 Extrusion jig 1
33 876 982 Guide sleeve 1
34 877 650 Handle for insertion jig 1
35 876 502 Insertion jig 1
36 877 255 Insertion jig 1
37 876 607 Insertion jig 1
38 876 510 Insertion jig 1
39 877 031 Rubber protection mat 1
40 877 091 Piston pin extractor assembly 1
41 877 040 Expansion sleeve 1
42 877 155 Extracting nut assembly 1
43 877 180 Locating sleeve 1
44-45 877 015 Circlip installation tool, 277 to 582-90 for 945 735 1
  877 515 Circlip installation tool, 681 only for 945 735 1
  877 805 Circlip installation tool for monohook type clip 845 540 1
46 897 511 Loctite 380 black, 20 gram 1
47 LT222 Loctite 222, violet 1
48 LT680 Loctite 680, green 1
49 297 386 Silastic 732 RTV, 100 gram 1
50 897 330 Lithium based grease, 250 gram 1
51 DOW44 Molykote 44, medium grease 1
52 897 241 Permanent plastic sealer 1
53 297 433 Molykote G-N slide paste, 50 grams 1
54 PSAS Anti seize 1
55 899 784 Loctite 574, orange 1
56 M277BL Engine block only, 277 1
  M447BL Engine block only, 447 1
  M503BL Engine block only, 503 1
  M582BL Engine block only, 582 1
  M618BL Engine block only, 618 1
57 992 068 Gasket set, 277 1
  994 865 Gasket set, 377 1
  994 867 Gasket set, 447 provision 4 1
  994 869 Gasket set, 447 provision 8/CDI 1
  994 861 Gasket set, 503 provision 4 1
  994 864 Gasket set, 503 provision 8 PI 1
  994 236 Gasket set, 503 CDI 1
  994 428 Gasket set, 532 1
  886 230 Gasket set, 582 1
  886 238 Gasket set, 618 1
