Tires for ultralights, tubes for ultralight wheels,
ultralight tires and tubes.
|
|
|
|
|
|
|
 |
|
|
|
How do you measure the tire, what do the numbers mean?
In this case: 13-500 x 6 is:
13 is the outside diameter
5.00 is the width in inches
6 is the wheel rim diameter in inches
|
|

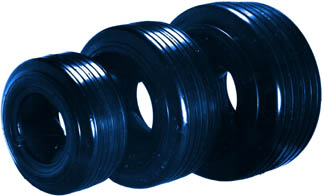

RIBBED
| SIZE |
TIRE |
PLY |
WIDTH |
OD |
EACH U.S.
|
|
INNERTUBE |
| 10-300 x 4 |
7014 |
4 |
3.2 |
10.0(r) |
15.75 |
|
7128 |
| 13-400 x 6 |
7011 |
2 |
4.1 |
13.0(r) |
13.50 |
|
7133 |
| 13-400 x 6 |
7005 |
4 |
4.1 |
13.0(r) |
15.50 |
|
7133 |
| 13-500 x 6 |
7018-2 |
2 |
4.8 |
12.6 |
17.50 |
|
7133 |
| 15-600 x 6 |
7050-2 |
2 |
5.9 |
14.8 |
25.00 |
|
7125 |
| 15-600 x 6(c) |
7088 |
4 |
6.0 |
15.0 |
38.75 |
|
7125 |
| 800 x 6 |
7007 |
4 |
8.0 |
16.0 |
55.95 |
|
7138 |
| 14-300 x 8 |
7008-2 |
2 |
3.2 |
14.0(r) |
13.75 |
|
7123 |
| 410/350 x 8 |
7003-2 |
2 |
3.5 |
15.3(r) |
12.75 |
|
7123 |
| 480/400 x 8 |
7012 |
4 |
4.6 |
16.3(r) |
15.95 |
|
7121 |
| 16-650 x 8 |
7024-2 |
2 |
6.4 |
16.4 |
36.95 |
|
7118 |
| 18-850 x 8 |
7002 |
4 |
8.0 |
16.5 |
56.95 |
|
7120 |
| 18-950 x 8 |
7027 |
4 |
8.0 |
17.4 |
64.95 |
|
7120 |
| (c) =
Carlisle (r) = round profile |
|
|
| |
|
|

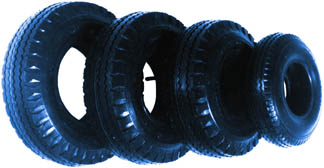

SAW TOOTH
| SIZE |
TIRE |
PLY |
WIDTH |
OD |
EACH U.S.
|
|
INNERTUBE |
| 280/250 X 4 |
7035 |
4 |
2.8 |
8.8 |
13.25 |
|
7129 |
| 410/350 X 4 |
7036 |
4 |
3.5 |
10.5 |
17.25 |
|
7130 |
| 340/300 X 5 |
7038 |
4 |
3.5 |
10.5 |
16.75 |
|
7131 |
| 410/350 X 5 |
7037 |
4 |
3.5 |
11.5 |
19.75 |
|
7132 |
| 410/350 X 6 |
7039 |
4 |
4.0 |
12.5 |
21.95 |
|
7133 |
| 530/450 X 6 |
7051 |
4 |
5.3 |
14.7 |
33.50 |
|
7134 |
| 480/400 X 8 |
7010-2 |
2 |
4.6 |
16.0 |
33.95 |
|
7121 |
| |
|
|
|
|
|
|
|
|
|

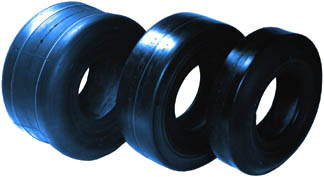

SLICKS
| SIZE |
TIRE |
PLY |
WIDTH (in.) |
OD (in.) |
|
EACH U.S.
|
INNER TUBE |
| 410/350x4R |
7041 |
4 |
3.5 |
10.5 |
25.25 |
|
7130 |
| 340/300x5N |
7045 |
4 |
2.5 |
10.8 |
21.95 |
|
7131 |
| 340/300x5R |
7042 |
4 |
3.5 |
10.8 |
24.50 |
|
7131 |
| 410/350x5R |
7043 |
4 |
3.5 |
11.5 |
28.50 |
|
7132 |
| 11-350x5R |
7029 |
4 |
3.7 |
11.0 |
22.50 |
|
7132 |
| 11-450x5R |
7016-2 |
2 |
4.2 |
10.5 |
32.25 |
|
7132 |
| 11-600x5R |
7093 |
4 |
5.5 |
11.0 |
28.95 |
|
7116 |
| 11-600x5C |
7092-2 |
2 |
5.3 |
10.5 |
29.95 |
|
7116 |
| 410/350x6R |
7044 |
4 |
3.5 |
12.6 |
29.75 |
|
7133 |
| 12-600x6R |
7017-2 |
2 |
6.0 |
11.8 |
36.50 |
|
7127 |
| 480/400x8 |
7004-2 |
2 |
4.6 |
16.3 |
21.50 |
|
7121 |
| 18-950x8 |
7019 |
4 |
9.5 |
15.5 |
83.95 |
|
7120 |
| 57-10x10 |
7001 |
4 |
8.0 |
17.0 |
140.00 |
|
7142 |
| |
|
|
|
|
|
|
|
|
|
HEAVY DUTY SLICKS
| SIZE |
TIRE |
PLY |
WIDTH |
OD |
EACH U.S.
|
INNER TUBE |
| 11-360 x 5 |
7094 |
4 |
3.6 |
11.0 |
|
7131 |
| 12-400 x 5 |
7095 |
4 |
4.0 |
12.0 |
|
7132 |
| 13-400 x 6 |
7096 |
4 |
4.0 |
13.0 |
|
7133 |
| |
|
|
|
|
|
|
|
|

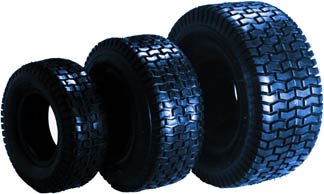

TURF SAVER TIRES
| SIZE |
TIRE |
PLY |
WIDTH (in.) |
OD (in.) |
|
EACH U.S.
|
INNER
TUBE |
| 410/350x4 |
7057-2 |
2 |
3.5 |
10.3 |
14.95 |
|
7130 |
| 11-400x5 |
7047-2 |
2 |
4.0 |
10.7 |
|
|
7131 |
| 13-500x6 |
7049-2 |
2 |
4.4 |
12.8 |
|
|
7133 |
| 13-650x6 |
7052-2 |
2 |
6.0 |
12.5 |
|
|
7141 |
| 15-600x6 |
7048-2 |
2 |
6.1 |
14.8 |
|
|
7125 |
| 16-650x8 |
7015 |
4 |
6.4 |
16.4 |
40.00 |
|
7118 |
| 18-850x8 |
7026-2 |
2 |
8.0 |
17.0 |
|
|
7120 |
| 18-950x8 |
7028 |
4 |
8.5 |
17.5 |
67.95 |
|
7120 |
| |
|
|
|
|
|
|
|
|
|
INNER TUBES
| SIZE |
PART# |
EACH U.S.
|
|
| 280/250-4 |
7129 |
$5.50 |
|
| 300X4 |
7128 |
$7.90 |
|
| 410/350X4 |
7130 |
$6.95 |
|
| 340/300X5 |
7131 |
$6.50 |
|
| 410/350X5 |
7132 |
$6.95 |
|
| 11-400X5 |
7135 |
$8.25 |
|
| 11-600X5 |
7116 |
$13.95 |
|
| 410/350X6 |
7133 |
$7.95 |
|
| 12-600X6 |
7127 |
$11.50 |
|
| 13-500X6 |
7136 |
$8.75 |
|
| 13-650X6 |
7141 |
$10.95 |
|
| 530/450X6 |
7134 |
$8.95 |
|
| 15-600X6 |
7125 |
$9.50 |
|
| 145-70X6 |
7140 |
$11.60 |
|
| 16-800X7 |
7119 |
$15.95 |
|
| 800X6 |
7138 |
$18.95 |
|
| 325/350X8 |
7123 |
$8.40 |
|
| 480/400X8 |
7121 |
$8.40 |
|
| 16-650/750X8 |
7118 |
$11.50 |
|
| 18-850/950X8 |
7120 |
$16.50 |
|
| 250X10 |
7126 |
$11.50 |
|
| 325/350X10 |
7137 |
$11.95 |
|
| 20.5-800X10 |
7142 |
$19.95 |
|
| |
|
|
|
|
Tire Mounting Precautions
NOTE: FOLLOW INFLATION
LIMIT BELOW EVEN IF MARKING ON TIRE IS GREATER.
- 1. ALWAYS CLEAN THE WHEEL RIM AND
LUBRICATE THE TIRE BEADS AND WHEEL RIM WITH A SOAP
SOLUTION OR OTHER APPROVED TIRE LUBRICANT.
- 2. USE AN EXTENSION HOSE AND IN-LINE
GAUGE WITH REGULATED AIR PRESSURE.
- 3. DO NOT STAND OVER TIRE WHILE INFLATING. USE
SAFETY GLASSES AND SAFETY CAGE OR OTHER APPROVED
INJURY-PREVENTION DEVICE DURING THE INFLATION PROCESS.
- 4. NEVER PRY AGAINST WHEEL RIM TO SEAT A
TIRE.
- 5. DO NOT EXCEED 25 PSI TO SEAT THE TIRE
ON TWO-PIECE WHEELS. IF BEADS ARE NOT PROPERLY SEATED, AIR PRESSURE
OVER 25 PSI CAN CAUSE THE ASSEMBLY TO EXPLODE WITH FORCE
SUFFICIENT TO CAUSE SERIOUS OR FATAL INJURIES. IF STILL NOT
SEATED AT THAT PRESSURE, DEFLATE COMPLETELY, DISASSEMBLE AND
RE-LUBRICATE AS DISCUSSED ABOVE.
- 6. FOLLOW TIRE MANUFACTURER'S INFLATION
RECOMMENDATIONS ONLY AFTER YOU ARE CERTAIN TIRE BEADS ARE FULLY
SEATED.
|
|
|
|
|
|
