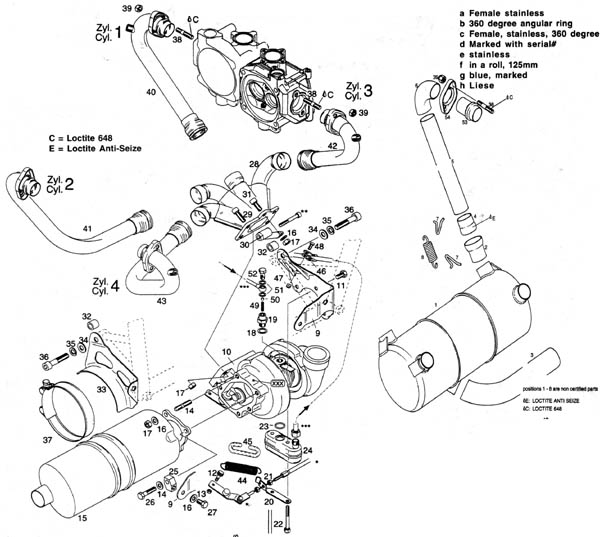

912/914

TURBOCHARGER, MUFFLER OIL SUMP CONTAINER EXHAUST


a Female Stainless
b 360 degree angular ring
c Female, stainless, 360 degree
d Marked with serial#
e Stainless
f In a roll, 125mm
g Blue, marked
h Liese

No. Part# Description 912UL 912A 912F 912ULS 912S 914UL 914F
1-2 978 480 Muffler assembly 1 1 1
1-2 978 482 Muffler assembly stainless 1a 1a 1a
1-2 973 670 Muffler assembly 1 1 1 1 1
2 978 510 Ball joint, female 4 4 4
978 511 Ball joint, female, stainless 4a 4a 4a 4a 4a
3 978 600 Exhaust elbow 1 1 1
978 601 Exhaust elbow, stainless 1a 1a 1a 1a 1a
4 978 520 Ball joint, male 4 4 4
978 521 Ball joint, male, stainless 4a 4a 4a 4a 4a
5 978 997 Exhaust tube 800mm 2 2 2
978 996 Exhaust tube 800mm, stainless 2a 2a 2a 2a 2a
6 978 497 Exhaust elbow assembly 2b 2b 2b
978 498 Exhaust elbow assembly, stainless 2c 2c 2c 2c 2c
7 853 355 Hook 16 16 16
853 356 Hook, stainless 16a 16a 16a 16a 16a
8 938 795 Spring, 66mm 8 8 8 8 8
9 851 291 Turbo bracket 1 1
10-13 887 123 Turbocharger cpl. 1d 1d
10-13 887 125 Turbocharger cpl. 1d 1d
11 940 583 Hex screw M8x16 stainless 4 4
12 929 030 Spring pin, stainless steel 1 1
13 942 020 Lock nut M5 1 1
14 940 173 Stud M8x19.5/13 4e 4e
15 979 401 Muffler assembly, stainless 1e 1e
16 250 313 Washer 8.4 stainless 1h 1h
17 242 203 Hex nut M8, stainless 7e 7e
18 250 640 Gasket 12x18 9e 9e
19 956 485 Valve housing 1 1
20 851 392 Cable support 1 1
21 242 211 Hex nut M6 2 2
22 640 600 Hex screw M6x55 2 2
23 430 225 O ring 15.9-2.3 1 1
24 956 495 Oil sump assembly 1 1
25 953 280 Support plate 1 1
26 940 493 Hex screw M8x35 stainless 1e 1e
27 940 583 Hex screw M8x16, stainless 1e 1e
28 979 411 Exhaust manifold assembly, stainless 1e 1e
29 240 083 Allen screw M8x25, stainless 4e 4e
30 953 300 Manifold bracket assembly, stainless 1 1
31 240 073 Cylinder screw M8x20, stainless 1e 1e
32 847 840 Space 10.5/17/15 2 2
33 851 300 Exhaust bracket 1 1
34 927 410 Washer 10.5 2 2
35 945 753 Lock washer 10mm 2 2
36 640 572 Allen screw M10x50 2 2
37 851 311 Clamp 120 1 1
38 940 366 Stud, M8x23/20 8 8 8 8 8 8 8
39 942 035 Lock nut, M8 8 8 8 8 8 8 8
40 979 421 Exhaust bend, cylinder 1, stainless 1e 1e
41 979 431 Exhaust bend, cylinder 2, stainless 1e 1e
42 979 441 Exhaust bend, cylinder 3, stainless 1e 1e
43 979 421 Exhaust bend, cylinder 4, stainless 1e 1e
44 838 232 Tension spring, stainless steel 1e 1e
45 960 080 Silicone tube, 5x8 NBf NBf
46 851 111 Cable clamp 8/M5 1 1
47 942 020 Lock nut M5 1 1
48 241 841 Allen screw M5x12 1 1
49 239 130 Compression spring 22 1 1
50 232 440 Ball 5.556mm 1 1
51 950 141 Gasket ring, 8x13 2 2
52 941 782 Banjo bolt M8x1x17 1g 1g
53 978 252 Exhaust socket 4 4 4 4 4
54 978 242 Exhaust socket 4 4 4 4 4
978 497 (donut) 97.50

978 499 (stainless steel donut) $143.50

978 997 (straight tube) $34.50

978 998 (stainless steel straight tube) $86.50
