BING 64 CARBURETOR

Bing 64 Carburetor, Bing altitude compensating carburetors, Rotax 912 carburetors, Rotax 912 carburetors

For all 912/914 engines

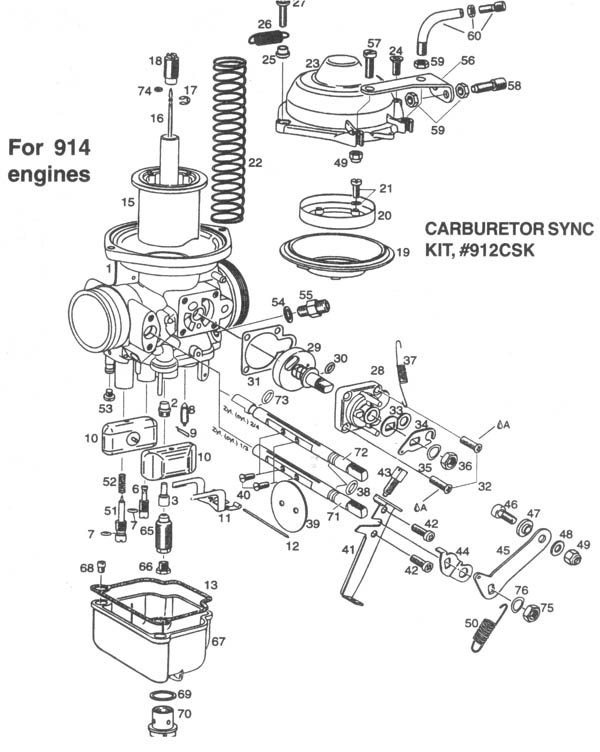

For 914 engines


Carburetor rebuild kit, #CRK2, enough for repairing 2 carburetors, includes 2 each of #13, #30, #31, #38, #74, and 4 each of #7, #40. CARBURETOR SYNC KIT, #912CSK

CARBURETOR HEAT KIT AVAILABLE

No. Part# Description 912UL 912A 912F 912ULS 912S 914UL 914F
887 262 Constant depression carburetor, assembly 1/3 1c 1c 1c
887 267 Constant depression carburetor, assembly 2/4 1d 1d 1d
887 264 Constant depression carburetor, assembly 1/3 1e 1e
887 269 Constant depression carburetor, assembly 2/4 1f 1f
888 377 Constant depression carburetor, assembly 2/4 1i
888 372 Constant depression carburetor, assembly 1/3 1j
888 370 Constant depression carburetor, assembly 1/3 1k 1k
888 375 Constant depression carburetor, assembly 2/4 1l 1l
887 092 Constant depression carburetor, assembly 1/3 1m 1m
887 097 Constant depression carburetor, assembly 2/4 1n 1n
1 Carburetor housing 1g 1g 1g 1g 1g 1g 1g
2 961 200 Diffuser 1 1 1 1 1
961 202 Diffuser 1 1
3 261 607 Needle jet 2.72 1 1 1 1 1
261 608 Needle jet 2.70 1 1
4 430 800 O ring 8x2 1 1 1 1 1
5 827 160 Shim 1 1 1 1 1
6 963 143 Idle jet 35 1 1 1 1 1 1 1
7 831 710 O ring 3.2x1.8 2 2 2 2 2 2 2
8 261 705 Float needle w/viton tip 1 1 1 1 1
261 707 Float needle valve w/viton tip 1 1
9 261 710 Float needle clip 1 1 1 1 1 1 1
10 861 182 Float 2 2 2 2 2 2 2
11 861 190 Float bracket 1 1 1 1 1 1 1
12 929 700 Pin 1 1 1 1 1 1 1
13 830 727 Float bowl gasket 1 1 1 1 1 1 1
14 963 180 Spring clip 1 1 1 1 1
15 961 230 Carburetor piston 1 1 1 1 1 1 1
16 961 215 Jet needle 1 1 1 1 1 1 1
17 945 785 Circlip 1 1 1 1 1 1 1
18 961 290 Fixation screw 1 1 1 1 1
961 292 Fixation screw 1p 1p
19 861 115 Diaphragm 1 1 1 1 1 1 1
20 961 240 Retaining ring 1 1 1 1 1 1 1
21 841 210 Combined screw M4x12 4 4 4 4 4 4 4
22 938 365 Throttle valve spring 1 1 1 1 1 1 1
23 961 250 Chamber top 1 1 1 1 1 1 1
24 841 340 Countersunk screw M5x12 1 1 1 1 1 1 1
25 847 910 Distance sleeve 1 1 1 1 1 1 1
26 838 242 Spring 1 1 1 1 1 1 1
27 640 250 Slotted pan head screw M5x20 1 1 1 1 1 1 1
28 961 280 Choke housing 1 1 1 1 1 1 1
29 961 270 Choke valve assembly 1a 1a 1a 1a 1a 1a 1a
961 275 Choke valve assembly 1b 1b 1b 1b 1b 1b 1b
30 950 420 Gasket 1 1 1 1 1 1 1
31 950 030 Gasket 1 1 1 1 1 1 1
32 841 360 Slotted head screw M4x14 4 4 4 4 4 4 4
33 848 240 Choke lever inside 1 1 1 1 1 1 1
34 848 245 Choke lever outside 1 1 1 1 1 1 1
35 845 035 Spring washer 8.3/13.6/.4 2 2 2 2 2 2 2
36 942 290 Hex nut M8x1 2 2 2 2 2 2 2
37 938 287 Return spring 1 1 1 1 1 1 1
38 950 020 O ring 6x1.9 1 1 1 1 1 1 1
39 965 665 Throttle valve 1 1 1 1 1 1 1
40 941 200 Slotted head screw M3x6 2 2 2 2 2 2 2
41 961 260 Cable support 1a 1a 1a 1a 1a 1a 1a
961 265 Cable support 1b 1b 1b 1b 1b 1b 1b
42 241 212 Slotted head screw M4x10 2 2 2 2 2 2 2
43 963 162 Throttle valve stop screw 1 1 1 1 1 1 1
44 848 232 Stop lever 1b 1b 1b 1b 1b 1b 1b
848 230 Stop lever 1a 1a 1a 1a 1a 1a 1a
45 848 239 Throttle valve lever 1 1 1 1 1 1 1
848 237 Throttle valve lever 1 1 1 1 1 1 1
46 241 846 Allen screw M5x12 1 1 1 1 1 1 1
47 847 741 Graduated sleeve 1 1 1 1 1 1 1
48 827 800 Washer 5.5 1 1 1 1 1 1 1
49 842 030 Lock nut M5 2 2 2 2 2 2 2
50 938 289 Return spring 1 1 1 1 1 1 1
51 961 221 Idle mixture screw 1 1 1 1 1 1 1
52 239 460 Compression spring 1 1 1 1 1 1 1
53 941 740 Slotted head screw M3.5x5 1 1 1 1 1 1 1
54 950 141 Gasket ring 8x13 3 3 1 3 1 1 1
55 941 852 Fuel line connector 1 1 1 1 1 1 1
56 851 071 Support, left 1a 1a 1a 1a 1a 1a 1a
851 073 Support, right 1b 1b 1b 1b 1b 1b 1b
57 240 761 Slotted head screw M5x16 1 1 1 1 1 1 1
58 241 440 Adjustment screw M6x.75 1 1 1 1 1 1 1
59 942 541 Hex nut M5x.75 3 3 3 3 3 3 3
60 861 640 Bent tube assembly 1 1 1 1 1 1 1
61 256 035 Air vent line, 120mm 1 1 1 1 1
62 847 794 Spacer, 8.4/12/7.5 1 1 1
63 956 312 Hose nipple 3/4 1 1 1
64 940 872 Banjo bolt M8x1x27 1h 1h 1h
65 963 130 Mixing tube 1 1 1 1 1
963 135 Mixing tube 1 1
66 268 985 Main jet 160 1a 1a
268 993 Main jet 164 1b 1b
268 984 Main jet 155 1 1
268 996 Main jet 158 1 1 1
67-68 963 176 Float chamber 1a 1a
963 178 Float chamber 1b 1b
963 172 Float chamber 1a 1a 1a 1a 1a
963 174 Float chamber 1b 1b 1b 1b 1b
68 268 758 Jet 85 1 1 1 1 1 1 1
268 762 Jet 105 1o 1o 1o 1o 1o 1o 1o
69 430 627 Gasket ring 1 1
70 963 280 Attachment screw 1 1
71 963 994 Throttle shaft 1b 1b
72 963 992 Throttle shaft 1 1 1 1 1 1a 1a
73 950 020 O ring 6x1.9 1 1
74 950 430 O ring 1 1
75 942 290 Hex nut M8x1 2 2 2 2 2 2 2
76 845 035 Spring washer 8.3/13.6/.4 2 2 2 2 2 2 2
