Rotax 618 aircraft engine parts.

# Part #
Description
Qty Req.
1 886 406 CRANKCASE ASSY 1

2

945 752  LOCK WASHER A8 2

3

841 831 ALLEN SCREW 4

4

841 306 HEX SCREW M8x5 2

5

841 847 ALLEN SCREW M8x65 2

6

640 942 ALLEN SCREW M8x45 6

7

945 751 LOCK WASHER A6 2

8

241 821 ALLEN SCREW M6x35 2

9

230 415 GASKET RING A 6x10 1

10

240 771 HEX. SCREW M6x10 1

11

922 245 ANGULAR TUBE 1/4-18 NPT 1

12

940 190 STUD M 10x29/20 4

13

945 753 LOCK WASHER A10 4

14

242 091 HEX. NUT N10 4

15

845 150 RETAINING RING 30X1.2 1

16

932 330 B. BEARING 16101-Z, 12-30-8 1

17

850 975 OIL SEAL 12x30x7 1

18

837 246 ROTARY VALVE SHAFT 1

19

930 580 OIL SEAL 20x40x7 1

20

932 032 B. BEARING 6203 TVH C3,
17-40-12
1
21 227 439 SHIM 17.2/32.5/1.5 1

22

845 450 RETAINING RING 17X1 1

23

847 282 SPACER 1

24

831 500 O-RING 14-3 1

25

935 735 ROTARY VALVE GEAR 14 T 1

26

938 810

COMPRESSION SPRING,
25.1 mm

1

27

827 430 SPRING HOLDING CUP 1

28

845 160 CIRCLIP 12 1B

29

850 942 ROTARY SEAL 1
30 430 800 O RING 1
31 847 810 ROTARY SEAL SLEEVE 1
32 227 155 FRICTION WASHER 1
33 922 036 IMPELLER 1
34 244 211 WASHER 1
35 842 042 LOCK NUT M6 1
36 831 616 GASKET 1
37 922 502 WATER PUMP HOUSING MOUNT, VENTING SCREW DOWN 1
38 830 890 GASKET RING 6.2/8.9/1 2
39 841 580 HEX SCREW M6X8 2
40 940 558 HOSE NIPPLE M6 FOR BLEEDING AIR OUT WHEN ENGINE IS INVERTED 1
41 244 211 WASHER 6.4 4
42 240 036 HEX SCREW M6X25 4
43 845 260 SNAP RING 40X1.75 1
44 924 507 ROTARY VALVE 151 DEGREES 1
45 851 250 CLAMP 15/M5 1
46 827 800 WASHER A5.5 1
47 865 993 MASS CABLE ASSEMBLY 1
48 945 750 LOCK WASHER A 5 1
49 840 511 ALLEN SCREW M5X6 1
886 230 ROTAX 618 GASKET SET
A. Rotary vale for configuration with rotary seal (618 UL DCDI Mod. 99)
B. The circlip must be positioned at the inner groove only (618 UL DCDI Mod. 99)
E. Crankcse including rotary valve drive, configuration with rotary seal model 99.

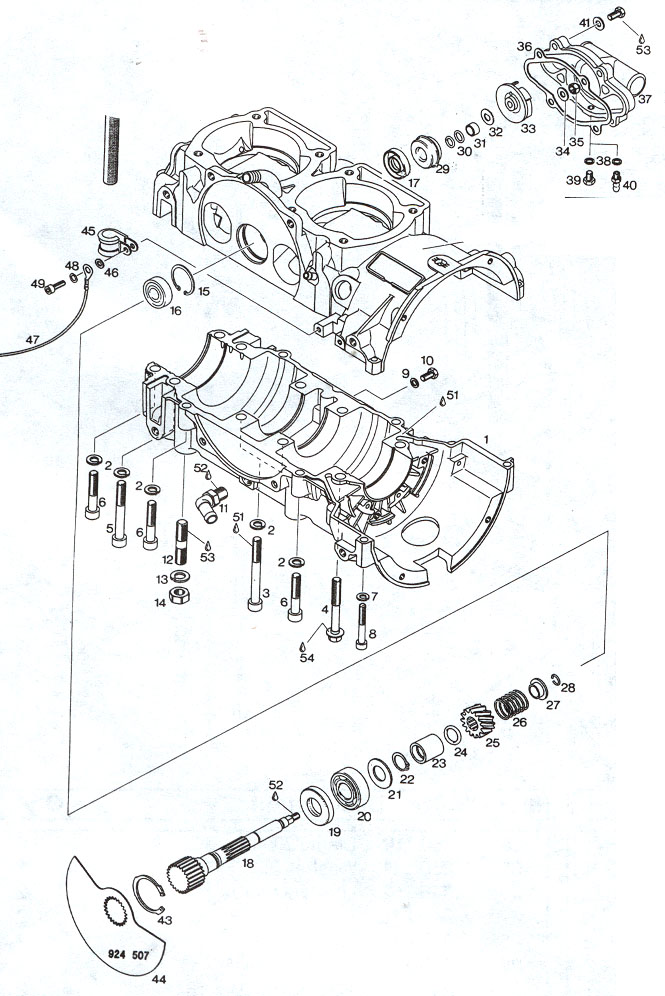

Rotax 618 rotary valve shaft parts.
Rotax 618 rotary valve shaft parts.
