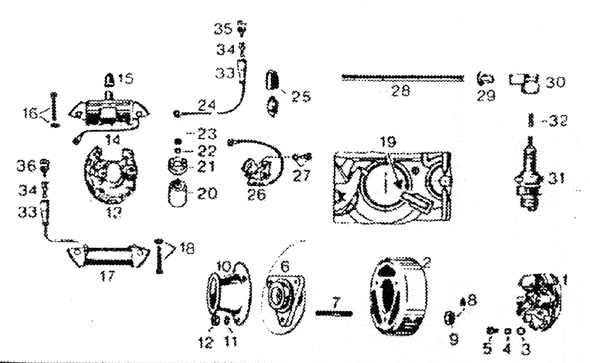

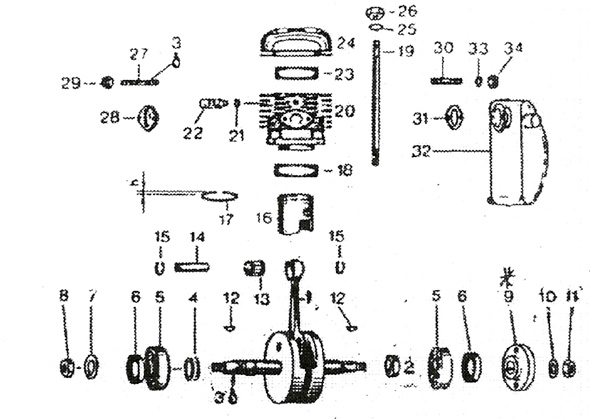

Rotax 185 Parts breakdown in PDF format

you will require Abode Acrobat reader to view these pages!
You can obtain it FREE at http://www.adobe.com/prodindex/acrobat/readstep.html

  BASE GASKET 230 068 2.40
  STUDS M6 X 21.5 240 570   3.65
  SLOTTED HEAD SCREW 241 286 0.50
  SCREW M4x23  241 355
  NUT M12 x 1.0 242 515 4.80
  WASHER 4.3  244 072   0.65
  DOWEL TUBE 249 760
  IGNITION COIL 264 335 210.00
  IGNITION CABLE (PER METER) 265 749
  PROTECTION CAP 676 120
  SEALING RING  850 270
  FASTON CONNECTOR 864 550
  MAGNETO HUB  866 730
  BANANA PLUG BLACK 866 740
  CYLINDER HEAD  913 675
  CYLINDER HEAD  913 675
  RECTANGULAR RING
62 DIA .2MM HIGH 		915 240 15.65
  RECT RING
1ST OVER 62.5 DIA .2MM H.  		915 241  16.85
  GASKET, CYLINDER HEAD 930 046 16.25
  OIL SEAL  20-35-7 930 390 22.75
  CRANKCASE GASKET 930 880 4.45
  ISOLATING FLANGE 930 915 33.25
  NEEDLE CAGE 932 904 34.40
  EXHAUST STUD M8 x 19.5  940 170
  STUD M6 x 15 940 655
  LOCKING NUT M6 942 040 1.75
  HEX NUT M 14 X 1.5  942 200 5.85
  HEX NUT, M12 x 1 942 522
  SHIM 944 460 1.40
  SHIM 20,5/30/0,3 944 461 1.65
  SHIM 0,4MM 944 463 1.65
  SHIM 0,8MM 944 464 1.85
  SHIM 20,5/30/1 944 466 1.85
  CIR CLIPS 945 735 1.00
  LOCK WASHER 12, MAGNETO SIDE 945 754 0.50
  LOCK WASHER 14 945 755 0.99
  LOCK WASHER A4 945 758 0.50
  DISTANCE SLEEVE 947 685
  EXHAUST GASKET  950 261 9.50
  RUBBER GROMMET  960 290
  PROTECTION CAP 960 360 3.75
  REDUCTION SLEEVE 960 480
  PROTECTION SLEEVE 960 710 1.20
  CONDENSER 964 217 24.50
  SHORTING CABLE 964 275
  PULLER 976 235
  POINTS 983 343 24.80
  CRANKSHAFT ASSY. 983 694
  PISTON ASSY. 62mm 994 045 178.45
  PISTON ASSY 1st OVER 62.45 994 046  187.50
