Rotax aircraft engine specialty tools, timing tools, magneto puller, fan tool, alignment bars, tool kit for Rotax engines.
|
|
| These are the tools and supplies that you will need to service and or repair the Rotax line of air cooled and liquid cooled aircraft engines. The include the Rotax 277, 377, 447, 503 532, 582 and Rotax 618 engines.
All prices are in Canadian funds. |
|
|

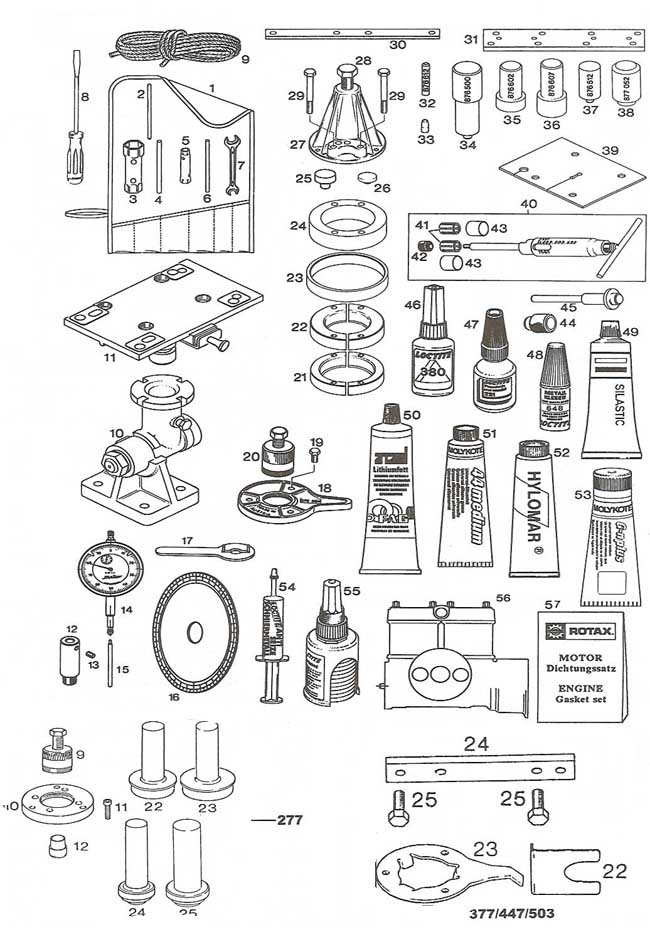

Item |
Part # |
Description |
Price |
Amount Required |
|
|
1 |
877 352 |
Tool kit |
$29.95 |
1 |
|
|
1 |
876 197 |
Tool bag |
$5.95 |
1 |
|
|
2 |
876 640 |
Fixation tool |
$2.00 |
1 |
|
|
3 |
876 210 |
Socket wrench, 21/26mm |
$4.95 |
1 |
|
|
4 |
977 420 |
Bolt 8x130-10 for socket wrench |
$1.50 |
1 |
|
|
5 |
876 227 |
Socket wrench, 10/13mm |
$3.40 |
1 |
|
|
6 |
977 425 |
Bolt 6x130-10 for socket wrench |
$1.25 |
1 |
|
|
7 |
276 065 |
Fork wrench 10x13mm |
$4.50 |
1 |
|
|
8 |
277
847 |
Screw driver |
$4.95 |
1 |
|
|
9 |
852 051 |
Starter rope, 5.5x2110mm |
$15.50 |
1 |
|
|
|
876 065 |
Mag Puller assy, 277 |
$39.50 |
1 |
|
|
10-11 |
876 740 |
Trestle assy |
$775.00 |
1 |
|
|
10 |
877 930 |
Trestle support assy |
$453.00 |
1 |
|
|
|
876 655 |
Puller
ring, 277 |
$53.00 |
1 |
|
|
11 |
876 746 |
Mounting plate w/detent for 277 through 618 |
$348.00 |
1 |
|
|
|
840 861 |
Cylinder screw M6x25,277 |
$1.10 |
3 |
|
|
12 |
876 940 |
Gauge adaptor |
$37.75 |
1 |
|
|
|
976 890 |
Protection cap assy, 277 |
$7.15 |
1 |
|
|
13 |
841 771 |
Set screw M6x8 |
$1.80 |
1 |
|
|
14 |
876 950 |
Precision dial gauge |
$158.00 |
1 |
|
|
15 |
876 945 |
Gauge pin
71mm |
$13.50 |
1 |
|
|
16 |
277 150 |
Degree disk, 532/582/618 |
$49.50 |
1 |
|
|
17 |
277 905 |
Wrench, oil pump gear |
$14.80 |
1 |
|
|
18 |
876 080 |
Puller plate,377 to 618 |
$41.50 |
1 |
|
|
19 |
940 591 |
Hex screw M8x20, 377 to 618 |
$1.20 |
3 |
|
|
20 |
876 065 |
Mag Puller 42 x1.5, 377 to 618 |
$39.50 |
1 |
|
|
21 |
977 475 |
Bearing puller half |
$53.50 |
2 |
|
|
22 |
276 025 |
Bearing puller half |
$81.80 |
2 |
|
|
|
276 930 |
Plastic ring, 277 mag |
$37.85 |
1 |
|
|
23 |
977 490 |
Ring for bearing puller |
$32.15 |
1 |
|
|
|
276 940 |
Insertion jig, 277 pto |
$38.25 |
1 |
|
|
|
876 357 |
Fan
holding tool, 3/4/5 |
$9.55 |
1 |
|
|
24 |
876 569 |
Distance ring for puller |
$72.25 |
1 |
|
|
|
277 875 |
Insertion Jig Assembly
Stamp to mount oil seal, 277 |
$33.05 |
1 |
|
|
|
876 171 |
Cylinder aligning tool, 3/4/5 |
$39.05 |
1 |
|
|
25 |
876 552 |
Protection mushroom, pto side |
$3.50 |
1 |
|
|
|
876 660 |
Insertion Jig Assembly
Stamp to mount oil seal, 277 |
$76.50 |
1 |
|
|
|
240 276 |
Hex screw M8x32 |
$1.20 |
|
|
|
26 |
876 557 |
Protection mushroom, mag side |
$7.90 |
1 |
|
|
27-28 |
877 635 |
Puller assy |
$111.55 |
1 |
|
|
28 |
940 755 |
Hex screw, M16x1.5x150 |
$38.10 |
1 |
|
|
29 |
841 201 |
Hex screw, M8x70 |
$2.75 |
4 |
|
|
30 |
876 572 |
Cylinder aligning tool, 532/582 |
$23.00 |
1 |
|
|
|
876 574 |
Cylinder aligning tool, 618 intake |
$26.25 |
1 |
|
|
31 |
876 904 |
Cylinder aligning tool, exhaust |
$52.50 |
1 |
|
|
32 |
876 612 |
Extrusion jig |
$19.75 |
1 |
|
|
33 |
876 982 |
Guide sleeve |
$15.80 |
1 |
|
|
34 |
876 500 |
Insertion jig |
$13.85 |
1 |
|
|
35 |
876 602 |
Insertion jig |
$27.15 |
1 |
|
|
36 |
876 607 |
Insertion jig |
$29.15 |
1 |
|
|
37 |
876 512 |
Insertion jig |
$27.60 |
1 |
|
|
38 |
876
502 |
Insertion jig |
$39.40 |
1 |
|
|
39 |
877 031 |
Rubber protection mat |
$16.10 |
1 |
|
|
41 |
877 040 |
Expansion sleeve |
$72.25 |
1 |
|
|
42 |
877 155 |
Extracting nut assy |
$39.40 |
1 |
|
|
43 |
877 180 |
Locating sleeve |
$2.80 |
1 |
|
|
44-45 |
877 015 |
Circlip installation tool, 277 to 582-90 for 945 735 |
$95.75 |
1 |
|
|
|
877 515 |
Circlip installation tool, 618 only for 945 735 |
$89.30 |
1 |
|
|
|
877 805 |
Circlip installation tool for mono hook type clip 845 540 |
$394.00 |
|
|
|
46 |
897 511 |
Loctite 380 black, 20 gram |
$68.25 |
1 |
|
|
47 |
899 785 |
Loctite 222, violet |
$30.50 |
1 |
|
|
48 |
899 780 |
Loctite 680, green |
$354.00 |
1 |
|
|
49 |
297 386 |
Silastic 732 RTV, 100 gram |
$53.55 |
1 |
|
|
50 |
897 330 |
Lithium based grease, 250 gram |
$61.25 |
1 |
|
|
51 |
897 166 |
Molykote 44, medium grease |
$140.35 |
1 |
|
|
52 |
897 241 |
Permanent plastic sealer |
$65.20 |
1 |
|
|
53 |
297 433 |
Molykote G-N slide paste, 50gr |
$81.90 |
1 |
|
|
54 |
297 434 |
Loctite Anti seize |
$31.35 |
1 |
|
|
55 |
899 784 |
Loctite 574, orange |
$118.15 |
1 |
|
|
56 |
M277BL |
Engine block only, 277 |
$quotation |
1 |
|
|
|
M447BL |
Engine block only, 447 |
$quotation |
1 |
|
|
|
M503BL |
Engine block only,503 |
$quotation |
1 |
|
|
|
M582BL |
Engine block only,582 |
$quotation |
1 |
|
|
|
M618BL |
Engine block only,618 |
|
1 |
|
|
57 |
992 068 |
Gasket set, 277 |
$85.00 |
1 |
|
|
|
994 865 |
Gasket set, 377 Does not include circlips |
$115.00 |
1 |
|
|
|
994 867 |
Gasket set, 447 prov 4 Does not include circlips |
$115.00 |
1 |
|
|
|
994 869 |
Gasket set, 447 prov 8/CD1 |
$125.00 |
1 |
|
|
|
994 861 |
Gasket set, 503 prov 4 |
$110.00 |
1 |
|
|
|
994 864 |
Gasket set, 503 prov 8 PI |
$125.00 |
1 |
|
|
|
994 236 |
Gasket set, 503
prov 8 CDI |
$125.00 |
1 |
|
|
|
994 428 |
Gasket set, 532 |
$185.00 |
1 |
|
|
|
886 230 |
Gasket set, 582 |
$195.00 |
1 |
|
|
|
886 238 |
Gasket set, 618 |
$265.00 |
1 |
|
| |
|
|
|
|
|
|
|
|
|
|
|
Special tools A&B gear box C gear box E gear box
