Rotax dual radiator system for Rotax liquid cooled aircraft engines, spark plug down configuration.

#
Part #
Description

Qty Req.


1 810 011 Gear Box Housing "C"  1

973.00

1 810 350 Gear Box Housing "E"  1

1247.50

2-26 881 436 Radiator Kit 1

1025.00

2 851 122 Bracket, right  1

55.75

3 851 127 Bracket, Left  1

55.75

4 260 657 Rubber Buffer 6

21.25

5 995 913 Radiator w/o filler cap 1

667.50

6 244 211 Washer 12

.25

7 945 751 Lockwasher  8

.25

8 242 211 Nut 6mm 6

.50

9 241 186 Screw 6 x16  2

.50

10 847 600 Distance Tube 1

36.50

11 847 605 Distance Tube  2

36.50

12 922 114 Connecting Hose 110mm 1

25.75

13 951 880 Clamp 20-32  4

5.00

14 922 124 Connecting Hose 150mm 1

16.75

15 951 870 Clamp 16-25  4

5.00

16 922 111 Bent Hose 1

53.50

17 922 121 Adapter Hose 30 mm 2

7.00

18 922 312 Expansion Tank
90 degrees
1

147.50

19 922 075 Radiator Cap w/ gasket 1

47.75

20 995 918 Radiator w/o filler cap  1

654.00

21 956 263 Radiator Hose 1000 mm  1

43.00

22 951 240 Clamp 12  2

4.00

23 860 305 Low Pressure Hose 280 mm  1

18.00

24 951 890 Clamp 7-11  2

7.00

25 922 325 Over flow Bottle w/ cap  1

45.75

26 922 381 Bent Hose 25190  1

59.00

27 922 060 Bent Outlet Socket  1

43.50

28 240 480 Plug Screw 1/8-27 npt  1

5.00

29 222 388 Water Pump Housing 1

155.50

30 830 890 Gasket ring 2

1.00

31 841 580 Screw 6x8 2

.50

32 940 558 Hose Nipple  1

15.50

33 Silastic 732 RTV req.
Rotax recommends a 50/50 mix of silicant FREE anti-freeze to distilled water for the Rotax 532, Rotax 582 and Rotax 618 two stroke engines.
For cylinder head down radiator installation drawing - click here!

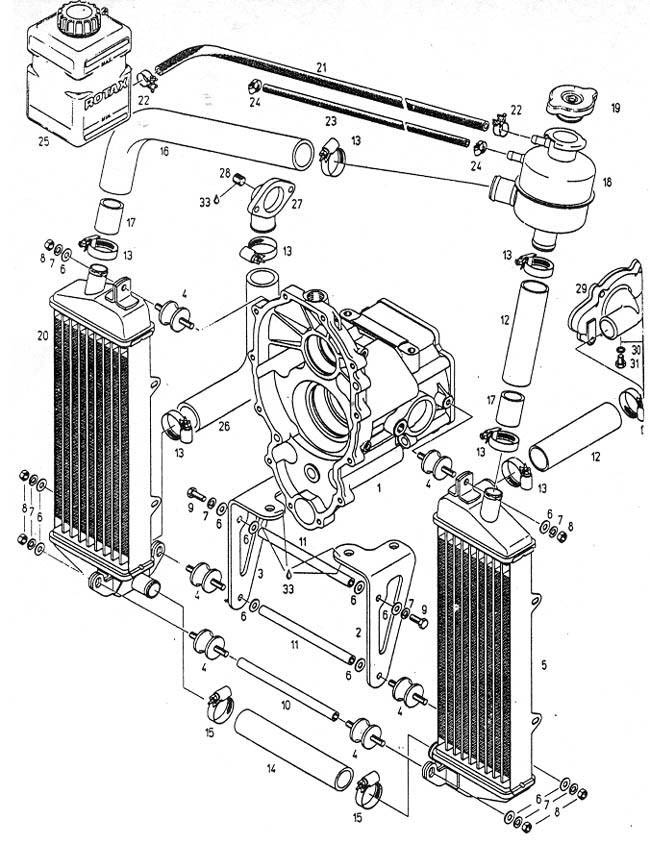

Rotax dual radiator system for plugs down installations
Rotax dual radiator system for plugs down installations
