Standard features....
-
no building
required - kit comes built ready for paint
-
aluminum D cell
wing construction with aluminum wing ribs
-
4130 chromoly
steel tubing fuselage
-
Cub style bungee
cord suspension system
-
rear float
mounting brackets welded into frame
-
in cabin
adjustable elevator trim
-
site fuel gauge(s)
-
site by side
seating in a 44 inch wide cabin
-
doors which can be
opened and closed in flight
-
gull wing style
engine compartment doors
-
tie down holds on
wing struts
-
C of G lifting
ring for hanging craft to mount floats
-
handle on rudder
for pulling plane back into parking area -no lifting required
-
dual stick and
rudder controls
-
throttle system
can be set up for 1, 2 or 3 separate throttle locations
-
large baggage area
behind seats
-
large windscreen
for excellent visibility

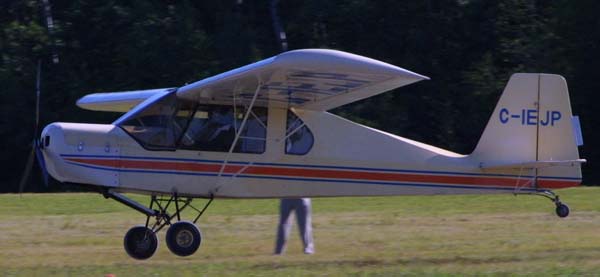

The L'il Buzzard has the strength of a Merlin, the sexiness
of a Kitfox, costs less than a Challenger, is ALREADY
BUILT, and comes with standard equipment the
others list as options.
The L'il Buzzard features side by side
seating, dual controls, side doors, which can be opened and
closed in flight, a 10 gallon wing fuel tank, with and optional
10 gallon tank available, fuel gauge(s), in cabin adjustable trim, a pilot adjustable control stick.

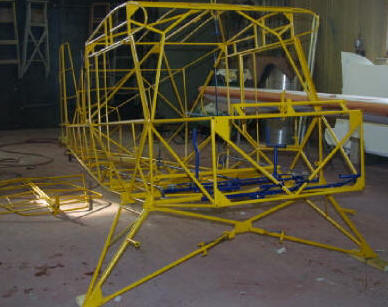

The L'il Buzzard has a 4130, chromoly welded

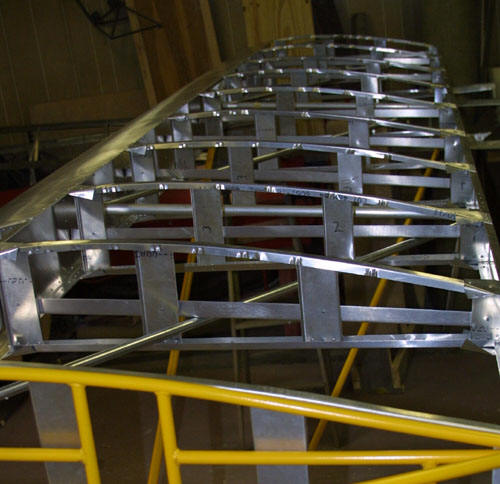

steel fuselage, "D" cell wing construction with
aluminum wing ribs. Covered in standard aircraft fabric covering materials.
NO WOOD OR FOAM!
The L'il Buzzard is delivered to the
customer......
BUILT,
covered and ready for paint as shown below!
Click
here for Option Price List:
Specifications:
-
Empty weight
ranges from 550 lbs to 770 lbs depending on engine and options
-
Gross weight
ranges from 1200 lbs as an ultralight in Canada to 1500 lbs as
an amateur built aircraft
-
Wing span is 33
feet 6
inches
-
Wing area is 172
square feet
-
Length is 20 feet
6 inches
-
cabin width 44
inches
-
range with
optional fuel tank on a 582 Rotax @ 4 gallons per hour 350 miles
with reserve
-
range with
optional fuel tank on 912 - 80 hp engine @ 2.5 gallons per hour
480 miles with reserve
Performance
Specifications
-
Cruise speed with
582 Rotax 65 hp - 80 mph
-
Cruise speed with
912 Rotax 80 hp - 85 mph
-
Climb rate with
582 Rotax 700 to 900 feet per minute
-
Climb rate with
912 Rotax 900 to 1200 feet per minute
-
Stall speed 35 mph
-
Stall speed with
flaperon option 27 mph
Click here for
flight report.
|
