ADDITIONAL INFORMATION FOR
SERVICE BULLETIN

CHECKING AND REPLACEMENT OF STATOR ASSY.
SB-912 026 /E
SB-914 014 /E

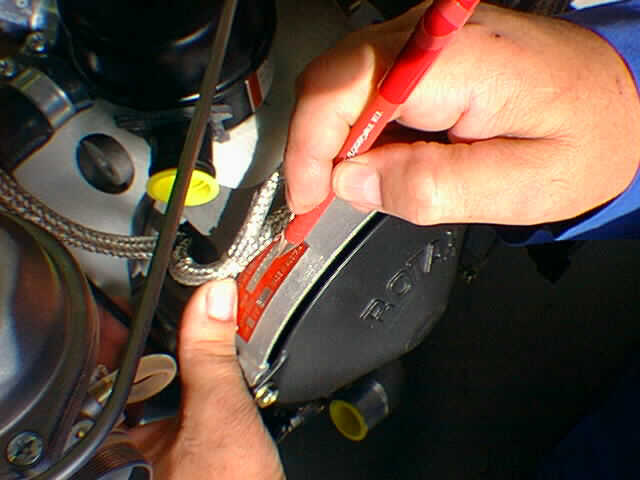

Location of engine serial number. Click for larger image. To determine if an engine is effected by these bulletins"> 912 Rotax stator update L'il Hustler's Ultralight Store 92 River Road PO Box 1710 Holland Landing Ontario Canada L9N 1P2          905-836-7588 L'il Hustler@ultralightnews.com Click here to go to the ULTRALIGHT STORE! Top 10 reasons to consider a  L'il Buzzard! Ultralight Airshow info  Ultralight Aircraft info Ultralight Engine info  Engine Maintenance info Click here for this months specials!   ADDITIONAL INFORMATION FOR SERVICE BULLETIN CHECKING AND REPLACEMENT OF STATOR ASSY. SB-912 026 /E SB-914 014 /E       Location of engine serial number. Click for larger image. To determine if an engine is effected by these bulletins, and if so, which group the engine falls into, the engine serial number must be known. 1)  Planning information 1.1) Engines affected All versions of the engine type: group A*) **- 912 ULS(Series)from S/N 4,425.001 to S/N 4,425.013 - 912 ULS(Series)from S/N 4,425.014 to S/N 4,425.029 - 912 ULS (pre production) group B*) - 912 A (Series)from S/N 4,076.071 to S/N 4,410.366 - 912 F (Series)from S/N 4,412.502 to S/N 4,412.791 - 912 UL(Series)from S/N 4,152.112 to S/N 4,403.282 - 914 F (Series)from S/N 4,420.002 to S/N 4,420.157 - 914 UL(Series)from S/N 4,417.503 to S/N 4,417.783 - V 914 (pre-production) group C*) - 912 A (Series)from S/N 3,792.556 to S/N 4,076.063 - 912 UL(Series)from S/N 3,792.556 to S/N 4,005.299 group D*) - 912 A (Series)from S/N 3,792.541 to S/N 3,792.555 - 912 UL(Series)from S/N 3,792.501 to S/N 3,792.555 - V 912 (pre-production) group E*) - 912 A (Series)from S/N 4,076.064 to S/N 4,076.070 - 912 UL(Series)from S/N 4,005.300 to S/N 4,152.111 *)Because of the different versions of the stator and the associated varying instructions a subdivision into the above groups is imperative. This subdivision will follow through further chapters and procedures. **)for SMD-Modul with 3 wiring harness.  Next Page > SB-912 026 /E SB-914 014 /E Flying on floats - some things you should consider. Click here for more information. Ultralight Classified Ads Ultralight Aircraft reviews Ultralight Pilots lounge  Ultralight Parts store Click HERE to receive ULTRALIGHT NEWS EXTRA!! Click here for our latest issue packed full of information on ultralights and ultralight aviation! Ultralight Aircraft News Magazine PO Box 1710 Holland Landing Ontario Canada L9N 1P2                 905-836-7588 ulnews@ultralightnews.com    Search this site   powered by FreeFind   Ultralight Aircraft News Web Magazine PO Box 1710 Holland Landing Ontario Canada  L9N 1P2 905-836-7588. You may link to these pages or print them out for your own personal use, but no part of this publication may be copied or distributed, transmitted, transcribed, stored in a retrieval system, or translated into any human or computer language, in any form or by any means, electronic,  mechanical, manual, or otherwise,  without the written permission of Dave Loveman. By copying or paraphrasing the intellectual property on this site, you're automatically signing a binding contract and agreeing to be billed $10,000 payable immediately. Copyright Ultralight News -  Ultralight Flyer. ulnews@ultralightnews.com.
