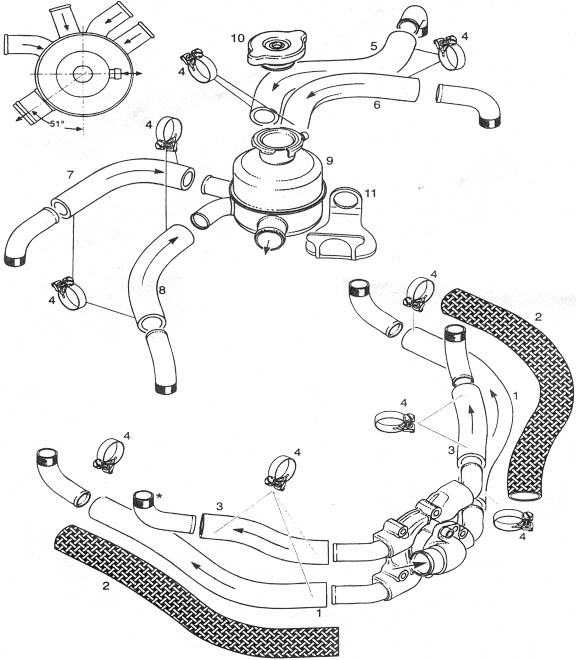

WATER CIRCUIT, NEW STYLE
| No. |
Part# |
Description |
912UL |
912A |
912F |
912ULS |
912S |
914UL |
914F |
| 1 |
922 253 |
Water tube, 17/290mm, #1&2 |
2a |
2a |
2a |
2a |
2a |
2a |
2a |
| 2 |
860 650 |
Protection tube, heat resistant |
|
|
|
|
|
NBh |
NBh |
| 3 |
922 252 |
Water tube, 17/180mm, #3&4 |
1b |
1b |
1b |
1b |
1b |
1b |
1b |
| 4 |
251 875 |
Clamp 23/12 |
16 |
16 |
16 |
16 |
16 |
16 |
16 |
| 5 |
922 542 |
Water tube 17/270mm |
1c |
1c |
1c |
1c |
1c |
1c |
1c |
|
922 545 |
Water tube 17/270mm |
1d |
1d |
1d |
1d |
1d |
1d |
1d |
| 6 |
922 191 |
Bent socket 17mm i.d., #3 |
1e |
1e |
1e |
1e |
1e |
1e |
1e |
| 7 |
922 255 |
Water tube 17/200mm, #2 |
1f |
1f |
1f |
1f |
1f |
1f |
1f |
| 8 |
922 541 |
Water tube 17/100mm, #4 |
1g |
1g |
1g |
1g |
1g |
1g |
1g |
| 9 |
922 266 |
Water tube distributor arry |
1i |
1i |
1i |
1i |
1i |
1i |
1i |
| 9-11 |
922 396 |
Expansion tank assembly |
1 |
1 |
1 |
1 |
1 |
1 |
1 |
| 10 |
922 075 |
Radiator cap w/gasket, 9bar |
1 |
1 |
1 |
1 |
1 |
1 |
1 |
| 11 |
860 825 |
Rubber plate |
1 |
1 |
1 |
1 |
1 |
1 |
1 |
NOTE: Hose size is 17mm i.d.
| a |
Supply to cylinder 1 and 2 |
| b |
Supply to cylinder 3 and 4 |
| c |
Discharge cylinder 1, for
version 2 and 4 |
| d |
Discharge cylinder 1, for
version 3 |
| e |
Discharge cylinder 3 |
| f |
Discharge cylinder 2 |
| g |
Discharge cylinder 4 |
| h |
In a roll, use 230mm, 9.5" |
| i |
Expansion tank for radiator
installation above engine |
|
|
|
|
|
|
|
|
|
| |
|
|
|
