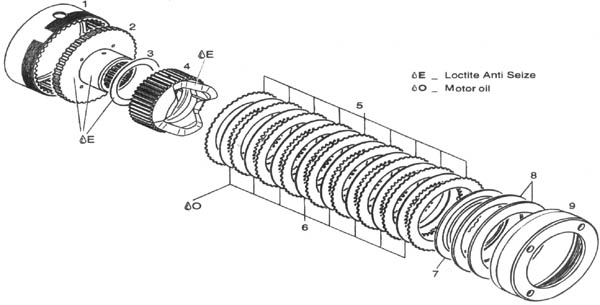

SLIDING CLUTCH
| No. |
Part# |
Description |
912UL |
912A |
912F |
912ULS |
912S |
914UL |
914F |
| 1-9 |
996 846 |
Clutch assembly |
1 |
1 |
1 |
1 |
1 |
1 |
1 |
| 1 |
958 910 |
Clutch drum |
1 |
1 |
1 |
1 |
1 |
1 |
1 |
|
965 911 |
Clutch drum |
1 |
1 |
1 |
1 |
1 |
1 |
1 |
| 2 |
958 905 |
Clutch hub |
1 |
1 |
1 |
1 |
1 |
1 |
1 |
| 3 |
944 080 |
Thrust washer 45.2/60/1 |
1 |
1 |
1 |
1 |
1 |
1 |
1 |
| 4 |
958 920 |
Dog hub |
1a |
1a |
1a |
|
|
1a |
1a |
|
958 924 |
Dog hub |
|
|
|
1b |
1b |
|
|
| 5 |
958 931 |
Steel friction plate 1.0mm |
9 |
9 |
9 |
9 |
9 |
9 |
9 |
| 6 |
958 941 |
Sinter friction plate 1.8mm |
8 |
8 |
8 |
8 |
8 |
8 |
8 |
| 7 |
958 950 |
Support ring |
1 |
1 |
1 |
1 |
1 |
1 |
1 |
| 8 |
838 160 |
Disk spring 100x76x2.7 |
2 |
2 |
2 |
2 |
2 |
2 |
2 |
| 9 |
842 640 |
Collar nut M102x1.5 |
1 |
1 |
1 |
1 |
1 |
1 |
1 |
|
842 641 |
Collar nut M102x1.4 |
1 |
1 |
1 |
1 |
1 |
1 |
1 |
a |
For gear sets #886 517, thin dog gear (22mm) |
| b |
For gear set #886 518, wide dog
gear, (27mm) |
|
|
|
|
|
|
