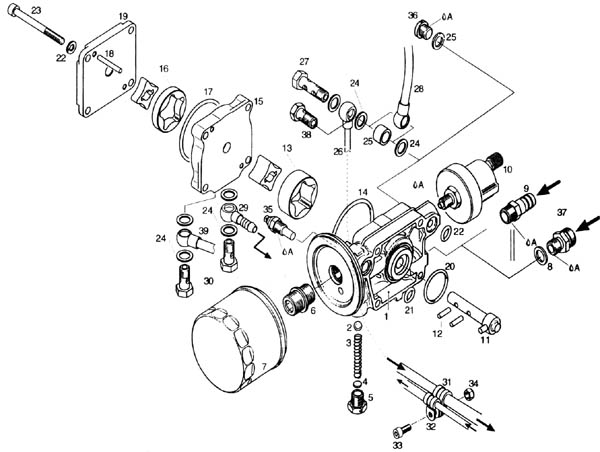

ROTAX OIL PUMP AND FILTER
Note a FRAM PH 3614 oil filter works on the Rotax 912.
| No. |
Part# |
Description |
912UL |
912A |
912F |
912ULS |
912S |
914UL |
914F |
| 1 |
810 805 |
Oil pump housing |
1 |
1 |
1 |
1 |
1 |
1 |
1 |
| 2 |
432 680 |
Ball 8.5mm |
1 |
1 |
1 |
1 |
1 |
1 |
1 |
| 3 |
838 122 |
Compression spring L39.5 |
1 |
1 |
1 |
1 |
1 |
1 |
1 |
| 4 |
227 055 |
Shim |
NB |
NB |
NB |
NB |
NB |
NB |
NB |
| 5 |
841 981 |
Plug screw M12x1 |
1 |
1 |
1 |
1 |
1 |
1 |
1 |
| 6 |
924 420 |
Oil filter nipple |
1 |
1 |
1 |
1 |
1 |
1 |
1 |
| 7 |
825 701 |
Oil filter |
1 |
1 |
1 |
1 |
1 |
1 |
1 |
| 8 |
230 385 |
Gasket ring A14x18 |
1 |
1 |
1 |
1 |
1 |
1 |
1 |
| 9 |
840 449 |
Nipple 13.2/9.5-M14x1.5 |
(1) |
1 |
1 |
(1) |
1 |
(1) |
1 |
| 10 |
956 357 |
Pressure sensor assembly |
1 |
1 |
1 |
1 |
1 |
1 |
1 |
| 11 |
837 127 |
Oil pump shaft assembly |
|
|
|
|
|
1 |
1 |
|
837 129 |
Oil pump shaft assembly |
1 |
1 |
1 |
1 |
1 |
|
|
| 12 |
232 730 |
Needle pin 4x15.8 G3 |
3 |
3 |
3 |
3 |
3 |
2 |
2 |
| 13 |
956 277 |
Suction inner and outer rotor |
1 |
1 |
1 |
1 |
1 |
1 |
1 |
| 14 |
430 405 |
O ring 57-3 |
1 |
1 |
1 |
1 |
1 |
1 |
1 |
| 15 |
810 590 |
Oil pump housing |
|
|
|
|
|
1 |
1 |
| 16 |
256 345 |
Pressure inner and outer rotor |
|
|
|
|
|
1 |
1 |
| 17 |
430 175 |
O ring 46x3 |
|
|
|
|
|
1 |
1 |
| 18 |
232 430 |
Needle pin 4x29.8 G5 |
|
|
|
|
|
2 |
2 |
|
232 730 |
Needle pin 4x15.8 G3 |
2 |
2 |
2 |
2 |
2 |
|
|
| 19 |
911 711 |
Oil pump cover |
1 |
1 |
1 |
1 |
1 |
1 |
1 |
| 20 |
950 410 |
O ring 30x2.5 |
1 |
1 |
1 |
1 |
1 |
1 |
1 |
| 21 |
250 460 |
O ring 11-2.7 |
2 |
2 |
2 |
2 |
2 |
2 |
2 |
| 22 |
945 751 |
Lock washer A6 |
4 |
4 |
4 |
4 |
4 |
4 |
4 |
| 23 |
241 261 |
Allen screw M6x65 |
|
|
|
|
|
4 |
4 |
| 24 |
230 150 |
Gasket ring 10x14 |
4 |
4 |
4 |
4 |
4 |
|
|
| 25 |
847 227 |
Spacer 10.5/15/10 |
2 |
2 |
2 |
2 |
2 |
7 |
7 |
| 26 |
956 476 |
Turbo pressure oil line |
|
|
|
|
|
1 |
1 |
| 27 |
940 873 |
Banjo bolt M10x1x30 |
|
|
|
|
|
1 |
1 |
| 28 |
956 470 |
Turbo oil suction line |
|
|
|
|
|
1 |
1 |
| 29 |
956 314 |
Hose nipple 4/6 |
|
|
|
|
|
1 |
1 |
| 30 |
940 874 |
Banjo bolt M10x1x19 |
1 |
1 |
1 |
1 |
1 |
2 |
2 |
| 31 |
851 111 |
Cable clamp 8/M5 |
|
|
|
|
|
2 |
2 |
| 32 |
851 116 |
Cable clamp 5/M5 |
|
|
|
|
|
2 |
2 |
| 33 |
241 841 |
Allen screw M5x12 |
|
|
|
|
|
2 |
2 |
| 34 |
942 020 |
Lock nut M5 |
|
|
|
|
|
2 |
2 |
| 35 |
965 530 |
Temperature sensor |
1 |
1 |
1 |
1 |
1 |
1 |
1 |
| 36 |
440 061 |
Slotted head screw M10x1x8 |
1 |
1 |
1 |
1 |
1 |
|
|
| 37 |
956 570 |
Adaptor M18x1.5/M14x1.5 |
1 |
1 |
1 |
1 |
1 |
1 |
1 |
| 38 |
940 874 |
Banjo bolt M10x1x19 |
1 |
1 |
1 |
1 |
1 |
|
|
| 39 |
956 470 |
Turbo oil suction line |
|
|
|
|
|
1 |
1 |
| A |
899 785 |
Loctite 221, violet |
NB |
NB |
NB |
NB |
NB |
NB |
NB |
|
|
|
