ROTAX 912 HYDRAULIC GOVERNOR
GOVERNOR CAN ONLY BE MOUNTED
TO ENGINE IF ENGINE IS EQUIPPED WITH PROPER DRIVE HOUSING (MODEL 3 OR 4)
| a |
Woodward Governor marked with
serial number and gear ration of 2.27 |
| b |
Woodward Governor marked with
serial number and gear ration of 2.43 |
| c |
McCauley Governor for feather
position marked with serial# and gear ration 2.43 |
| d |
For McCauley Governor |

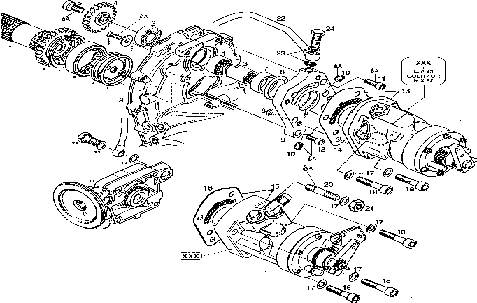

| Illustration Number |
Part# |
Description |
Quantity |
| 1 |
232 925 |
Needle sleeve
22x28x12 |
1 |
| 2 |
832 360 |
Ball bearing 16002 |
1 |
| 3 |
847 777 |
Drive sleeve |
1 |
| 4 |
843 245 |
Vacuum pump gear 22T |
1 |
| 5 |
941 521 |
Allen screw M8x16 |
1 |
| 6 |
830 415 |
O ring 7x2 |
2 |
| 7 |
847 800 |
Spacer 25/31.95/13 |
1 |
| 8 |
950 380 |
O ring 32x4 |
1 |
| 9 |
810 290 |
Governor flange, all
engines but 912S/ULS |
1 |
|
810 292 |
Governor flange, all
912/914's, including S |
1 |
| 10 |
941 611 |
Screw Plug M8x1 |
2 |
| 11 |
241 930 |
Allen screw M6x20 |
2 |
| 12 |
241 236 |
Allen screw M6x16 |
2 |
| 13-14 |
886 730 |
Governor A210786,
912UL, A and F only |
1a |
|
889 735 |
Governor A210786,
all 912/914's |
1b |
| 14 |
931 370 |
Gasket |
1 |
| 15-16 |
888 507 |
Governor |
1c |
| 16 |
931 375 |
Gasket |
1 |
| 17 |
945 752 |
Lock washer A8 |
4 |
| 18 |
840 681 |
Allen screw M8x40 |
3 |
| 19 |
841 591 |
Allen screw M8x35 |
1 |
| 20 |
940 301 |
Stud M8x37 |
1d |
| 21 |
242 206 |
Hex nut M8 |
1 |
| 22 |
956 460 |
Pressure oil line
assembly |
1 |
| 23 |
230 150 |
Gasket ring 10x14 |
2 |
| 24 |
940 874 |
Banjo bolt M10x1x19 |
1 |
|
|
|
|
|
|
|
