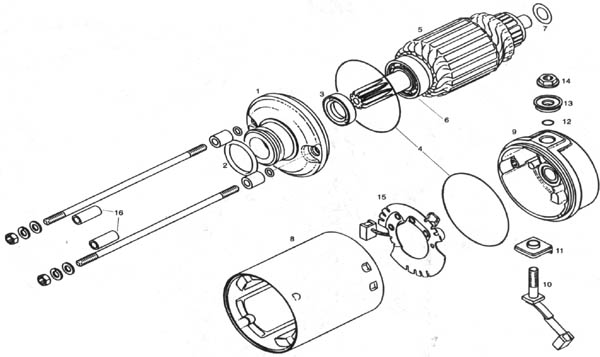

Rotax 912 electric start parts.
|
| No. |
Part# |
Description |
912UL |
912A |
912F |
912ULS |
912S |
914UL |
914F |
| 1 |
264 135 |
Support |
1 |
1 |
1 |
1 |
1 |
1 |
1 |
| 2 |
250 140 |
O ring |
1 |
1 |
1 |
1 |
1 |
1 |
1 |
| 3 |
250 130 |
Oil seal 15x24x5 |
1 |
1 |
1 |
1 |
1 |
1 |
1 |
| 4 |
850 500 |
O ring |
2 |
2 |
2 |
2 |
2 |
2 |
2 |
| 5 |
264 140 |
Rotor assembly |
1 |
1 |
1 |
1 |
1 |
1 |
1 |
| 6 |
232 260 |
Ball bearing 6002Z |
1 |
1 |
1 |
1 |
1 |
1 |
1 |
| 7 |
827 600 |
Shim |
NB |
NB |
NB |
NB |
NB |
NB |
NB |
| 8 |
264 150 |
Stator yoke assembly |
1 |
1 |
1 |
1 |
1 |
1 |
1 |
| 9 |
264 170 |
Rotor support assembly |
1 |
1 |
1 |
1 |
1 |
1 |
1 |
| 10 |
264 180 |
Carbon brush assembly |
1 |
1 |
1 |
1 |
1 |
1 |
1 |
| 11 |
260 810 |
Connector sheath |
1 |
1 |
1 |
1 |
1 |
1 |
1 |
| 12 |
230 530 |
O ring 6x1.7 |
1 |
1 |
1 |
1 |
1 |
1 |
1 |
| 13 |
260 800 |
Connector sheath |
1 |
1 |
1 |
1 |
1 |
1 |
1 |
| 14 |
242 780 |
Combined nut M6 |
1 |
1 |
1 |
1 |
1 |
1 |
4 |
| 15 |
866 890 |
Brush holder assembly |
1 |
1 |
1 |
1 |
1 |
1 |
1 |
| 16 |
974 524 |
Distance hose 45mm |
1a |
1a |
1a |
1a |
1a |
1a |
1a |
a |
Only used for transport |
NB=as required |
|
|
|
