Rotax 618 ignition and Rotax 618 magneto generator parts.

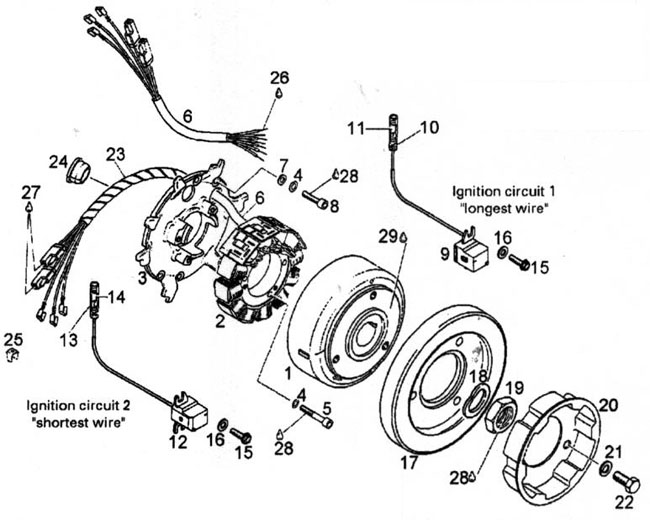

Rotax 618 magneto generator parts.
#
Part #
Description
1
996
835
MAGNETO
GENERATOR P12W150
1
996 821
MAGNETO FLYWHEEL to 4084218
996 821
MAGNETO FLYWHEEL 1 from serial# 4084219
2
996 848
COIL KIT P12W150
1 2-5 996-840 STATOR PLATE ASSY.
3
966 207
STATOR PLATE
4
945 750
LOCK WASHER A5
5
940 880
ALLEN
SCREW M5X30
6
965 462
HARNESS ASSY.
P12W150
7
927 571
WASHER 5.3
8
840 515
ALLEN SCREW
M5X18
9-11
965 769
PICKUP
ASSY. CIRCUIT 1 1 Air
gap on pickup assembly to block on magneto flywheel is .020
10
964 072
INSULATION SHEATH
11
964 067
FASTON
CONNECTOR 3.96
12-14
965
761
PICKUP ASSY.
CIRCUIT 2
13
964 072
INSULATION SHEATH
14
964 067
FASTON
CONNECTOR 3.96
15
941 925
TAPTITE
SCREW M5X16
16
827 800
WASHER A
5.5
17
965 497
HYDRO
DAMPER ASSY From serial# 4015239
18
945 759
LOCK WASHER 22
19
842 230
HEX NUT M22x15
20
852 410
STARTING
PULLEY, 0.872" thick From serial# 4015239 & above
20
852 422
STARTING PULLEY.
1.190" thick 1 Up to serial# 4015238
21
945 752
LOCK WASHER A8
From serial# 4015239 & above
22
940
581
HEX SCREW M8x20
22
940 580
HEX SCREW M8x16
3 Up to serial# 4015238
23
966 062
SPIRAL
HOSE 70mm
24
960 288
CABLE GROMMET
20.5/11
25
866 910
FASTON
CONNECTOR 6.3xO.8
26
INSULATING
VARNISH
27
897 330
BP ENERGREASE .250gr
28
899 785
LOCTITE
221 VIOLET 1Occ
29
899 788
LOCTITE 609
GREEN 10m
886 230
ROTAX 618 GASKET SET
Rotax 618 Magneto, Ducati ignition parts.
