Rotax 582, cylinder head, Rotax 582 blue head engine, Rotax 582 thermostat parts.


When was the last time you did maintenance on your K & N Airfilter? Is you filter safety wired? Click here to see how to clean and safety wire your airfilter!

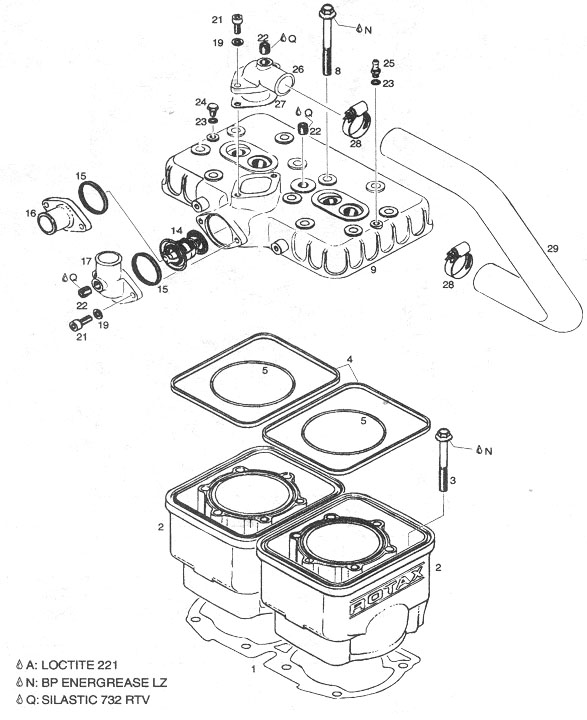

Rotax 582 Blue head parts.
#
 Part #
 Description
 Qty Req.
1 850 775 Base gasket 1
2 913 447 Cylinder with sleeve 2
3 640 951 Collar hex screw M8x68 8
4 850 040 Rubber ring  2
5 850 540 O ring 2
8 841 308 Collar hex screw M8x65 12
9 913 845 Cylinder head, 582-99 1
13-14 922 511 Thermostat w/gasket, 582-99 1
14 922 511 Thermostat, 55 degree 1
15 Thermostat gasket 1
16 922 025 Water outlet socket 1
17 922 061 Bent outlet socket 1
19 945 751 Lock washer, A6 2
20 242 211 Hex nut M6 2
21 241 932 Allen screw M6x20 2
22 240 483 Plug screw 1/8-27npt 3
23 830 890 Gasket ring 6.2/8.9/1 2
24 841 580 Hex screw M6x8 1
25 940 558 Hose nipple M6 1
26 922 062 Bent outlet socket 1
27 850 338 Gasket 1
28 951 880 Clamp 20-32 2
29 922 520 Molded hose 25/180 degree 1

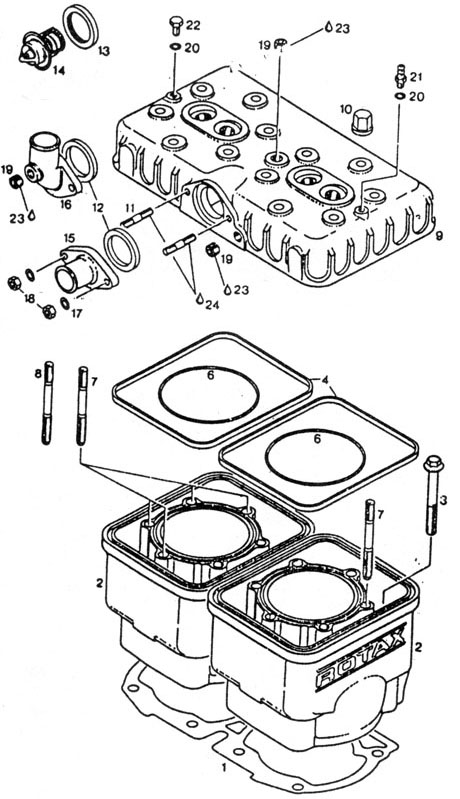

Rotax 582 cylinder head parts (engines prior to Blue Head model)
#
 Part #
 Description
 Qty Req.
1 850 775 CYLINDER BASE GASKET   1
2 913 447 CYL W/ SLEEVE 2
3 640 951 COLLAR-HEX SCREW M8X68.5 SW 11  8
4 850 040 RUBBER RING 152.5X2.5X5 2
6 850 540 O-RING 83-2 2
7 941 390 STUD M8X79 W/O 2 PC RAD 12
941 390 2 STUD M8X79 W/2 PC RAD 10
8 240 490 STUD M8X84 W/2 PC RAD 2
9 913 310 CYLINDER HEAD 1
10 842 471 CAP NUT M8 12
11 941 080 STUDM6X20/10  2
12 230 980 GASKET 1
13 230 800 GASKET FOR THERMOSTAT 1

Thermostat must be mounted on the engine with the holes up!

14 222 014 THERMOSTAT (135}  1
15 922 025 WATER OUTLET SOCKET  1
16 922 061 BENT OUTLET SOCKET 1
17 945 751 LOCK WASHER A6  2
18 242 211 HEX. NUTM6 2
19 240 480 PLUG SCREW 1/8-27NPT 2
20 830 890 GASKET RING 6.2/8.9/1 2
21 940 558 HOSE NIPPLE M6 1
22 841 580 HEX. SCREW M6X8  1
23 899 785 USE H4310,LOCTITE 221 VIOLET 1Occ
24 297 386
SILASTIC 732 RTV 100gr
25 897 330 USE H4382. BP ENERGREASE
