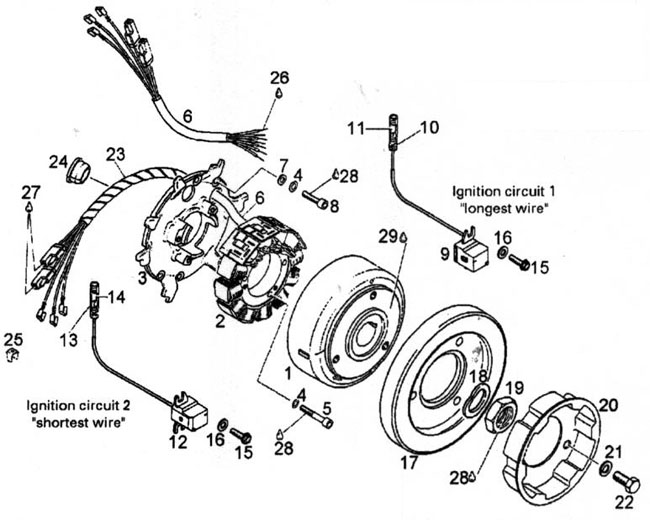

Rotax 582 Ducati ignition and magneto generator parts.

#
Part #
Description
1 996 835 MAGNETO GENERATOR P12W150
1 996 821 MAGNETO FLYWHEEL  P12W150 1 From serial# 4084219 & above
  996 820 MAGNETO FLYWHEEL 1 Up to serial# 4084218
2 996 849 COIL KIT P12W150 1 2-5 996-840 STATOR PLATE ASSY.
3 966 207 STATOR PLATE
4 945 750 LOCK WASHER A5
5 940 880 ALLEN SCREW M5X30
6 965 462 HARNESS ASSY. P12W150
7 927 571 WASHER 5.3
8 840 515 ALLEN SCREW M5X18
9-11 965 769 PICKUP ASSY. CIRCUIT 1 1 Air gap on pickup assembly to block on magneto flywheel is .020
10 964 072 INSULATION SHEATH
11 964 067 FASTON CONNECTOR 3.96
12-14 965 761 'PICKUP ASSY. CIRCUIT 2
13 964 072 INSULATION SHEATH
14 964 067 FASTON CONNECTOR 3.96
15 941 925 TAPTITE SCREW M5X16
16 827 800 WASHER A 5.5
17 965 497 HYDRO DAMPER ASSY From serial# 4015239
18 945 759 LOCK WASHER 22
19 842 230 HEX NUT M22x15
20 852 410 STARTING PULLEY, 0.872" thick From serial# 4015239 & above
20 852 422 STARTING PULLEY. 1.190" thick 1 Up to serial# 4015238
21 945 752 LOCK WASHER A8 From serial# 4015239 & above
22 940 580 HEX SCREW M8x20
22 940 580 HEX SCREW M8x16 3 Up to serial# 4015238
23 966 062 SPIRAL HOSE 70mm
24 960 288 CABLE GROMMET 20.5/11
25 866 910 FASTON CONNECTOR 6.3xO.8
26 INSULATING VARNISH
27 897 330 BP ENERGREASE .250gr
28 899 785  LOCTITE 221 VIOLET 1Occ
29 899 788 LOCTITE 609 GREEN 10m
886 230 ROTAX 582 GASKET SET
