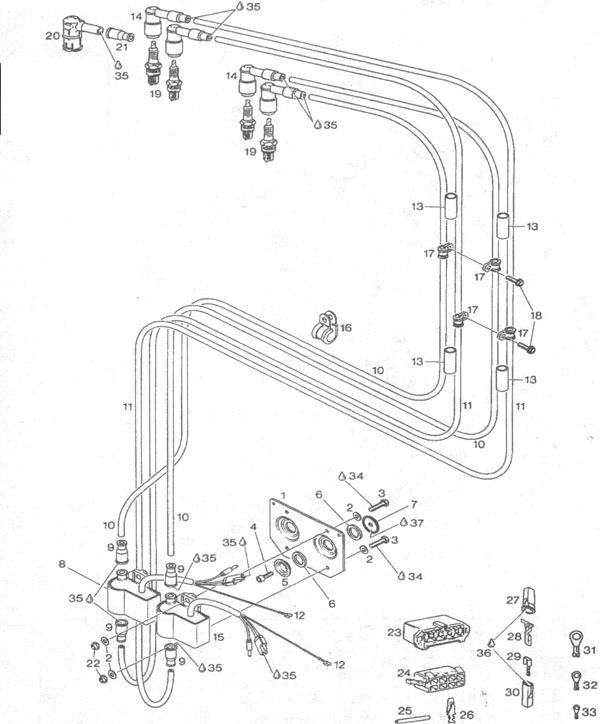

Rotax 503 Ducati ignition system
|
| # |
Part # |
Description |
Qty Req. |
Approximate U.S. Price |
Canadian
price |
|
|
1 |
851 040 |
Mounting plate |
1 |
|
50.10 |
|
|
2 |
244 211 |
Washer 6.4 |
8 |
|
.25 |
|
|
3 |
240 036 |
Hex screw M6x25, 5NM
|
4 |
|
.75 |
|
|
4 |
241 236 |
Allen screw M6x16 |
2 |
|
.75 |
|
|
5 |
827 815 |
Distance cap |
2 |
|
8.00 |
|
|
6 |
960 865 |
Rubber washer 18/26/3
|
4 |
|
1.75 |
|
|
7 |
944 090 |
Shim |
2
|
|
|
|
|
8-14 |
965 426 |
Electronic box assy.
|
1 |
|
356.00 |
|
|
9 |
960 550 |
Protection cap |
4 |
|
2.75 |
|
|
10 |
864 296 |
Ignition cable 560mm
|
2 |
|
8.50 |
|
|
11 |
965 524 |
Ignition cable 875mm
|
2 |
|
10.75 |
|
|
12 |
864 010 |
Faston connector 6.3x.6
|
2 |
|
1.00 |
|
|
13 |
830 962 |
Protection hose 12x16x40
|
4 |
|
1.80 |
|
|
14 |
866 705 |
Spark plug cap
|
4 |
|
15.50 |
|
|
15 |
965 427 |
Electronic box assy.
|
1 |
|
356.00 |
|
|
16 |
851 100 |
Cable clamp18 |
1 |
|
10.50 |
|
|
17 |
853 412 |
Cable clamp 8/M6
|
4 |
|
4.50 |
|
|
18 |
941 250 |
Taptite screw
M6x20, 8NM |
2 |
|
1.50 |
|
|
19 |
|
B8ES Spark plug, |
4 |
|
3.50 |
|
|
20 |
983 409 |
No longer available |
4 |
|
|
|
|
21 |
960 550 |
Protection cap
|
4 |
|
|
|
|
|
|
|
|
|
|
|
|
22 |
842 042 |
Lock nut M6, 8NM |
4 |
|
2.25 |
|
|
23 |
866 025 |
Connector housing |
1 |
|
|
|
|
24 |
866 010 |
Connector housing
|
1 |
|
|
|
|
25 |
860 621 |
Shrink hose 40mm |
As Req. |
|
|
|
|
26 |
866 305 |
Faston connector 6.3x.8
|
5 |
|
|
|
|
27 |
960 970 |
Protection cap |
As Req. |
|
|
|
|
28 |
866 300 |
Faston connector 6.3x.8
|
As Req. |
|
|
|
|
29 |
864 011 |
Faston connector 6.3x.8
|
As Req. |
|
|
|
|
30 |
960 719 |
Protection cap
|
As Req. |
|
|
|
|
31 |
964 055 |
Cable terminal M5 |
As Req. |
|
|
|
|
32 |
965 700 |
Cable shoe M4 |
As Req. |
|
|
|
|
33 |
965 706 |
Cable shoe M3 |
As Req. |
|
|
|
|
34 |
899 788 |
Loctite 609, green |
As Req. |
|
|
|
|
35 |
|
BP Energrease . |
As Req |
|
|
|
|
36 |
297 386 |
Silastic 732 RTV |
As Req. |
|
|
|
|
37 |
|
Contact adhesive |
As Req. |
|
|
|
|
|
|
|
|
|
|
|
|
Shop Supplies @ 12.50 per unit |
|
|
|
Labour rate at $79.95 per hour CDN |
|
|
|
|
|
|
|
|
