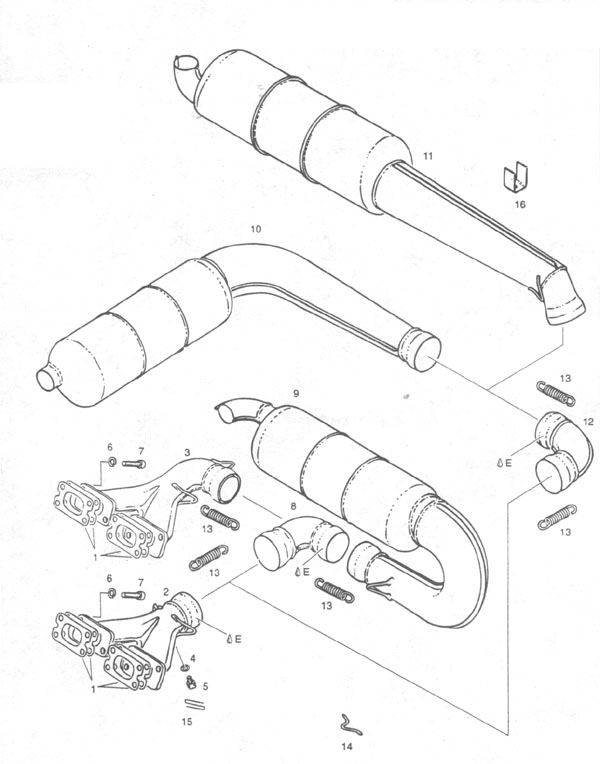

Rotax 503 exhaust system

#	Part #	Description	Qty Req.
1	831 849	Exhaust gasket, 503 CDI	4
2	878 937	Exhaust manifold, 503 threaded	1
3
4	950 141	Gasket ring, A8x13 2	2
5	941 615	Capstan screw, M8x1x10	2
6	945 752	503 4 Lock washer A8	4
7	840 991	Allen screw M8x30, 22NM	4
8	973 182	Connecting elbow with hooks	1
	973 180	Connecting elbow, no hooks	1
9	973 198	Muffler assy, sidemount, 10 3/8" inlet for 503 3pc	1
10	973 274	Muffler assy, 90 degree	1
11	973 191	Muffler assy, straight for 503, 16 3/4" inlet cone	1
12	973 180	Connecting elbow, no hooks	1
	973 182	Connecting elbow, with hooks	1
13	938 795	Exhaust spring, 66 mm 503	6
14	853 355	Exhaust spring hooks	12
15		Safety Wire
	842 758	THREADED WELD ON BOSS FOR 8MM EGT PROBES,NOT SHOWN	2
	994 236	Gasket set 503 DCDI ignition engine	1

Flying on floats - some things you should consider. Click here for more information.

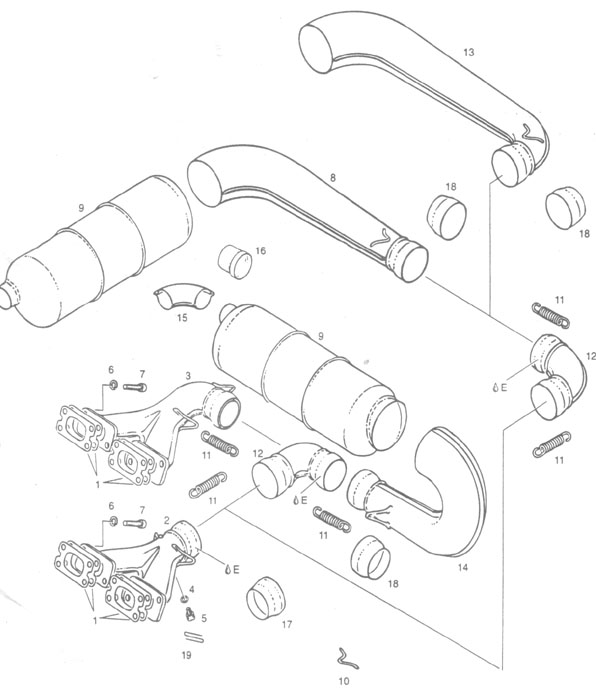

Rotax 503 exhaust system parts

#	Part #	Description
1	831 849	Exhaust gasket, 503CDI
2	878 937	Manifold assy, 503
4	950 141	Gasket ring 8x13
5	941 615	Capstan screw M8x1 x1 0
6	945 752	Lock washer A8, 503
7	840 991	Allen screw M8x30,22NM
8	973 546	Inlet cone assy
9	973 175	Muffler can assy
10	853 355	Exhaust Hook 503
11	938 795	Springs, 66mm, 503
12	973 180	Elbow, no hooks
	973 182	Elbow w/hooks
13	976 540	Inlet cone 503
15	879 920	Outlet elbow assy
16	978 640	Outlet tube assy
17	878 660	Ball joint, male
18	878 666	Ball joint, female
19		Safety wire, .032 stainless
	842 758	Threaded weld on boss for 8mm EGT probes,not shown
