Part # |
Description |
Qty Req. |
|
1 |
831 849 |
Exhaust gasket, 503 CDI
|
4 |
|
2 |
878 937 |
Exhaust manifold, 503
threaded |
1 |
|
3 |
|
|
|
|
4 |
950 141 |
Gasket ring, A8x13 2 |
2 |
|
5 |
941 615 |
Capstan screw, M8x1x10 |
2 |
|
6 |
945 752 |
503 4 Lock washer A8 |
4 |
|
7 |
840 991 |
Allen screw M8x30, 22NM |
4 |
|
8 |
973 182 |
Connecting elbow with
hooks |
1 |
|
|
973 180 |
Connecting elbow, no
hooks |
1 |
|
9 |
973 198 |
Muffler assy, sidemount,
10 3/8" inlet for 503 3pc |
1 |
|
10 |
973 274 |
Muffler assy, 90 degree |
1 |
|
11 |
973 191 |
Muffler assy, straight
for 503, 16 3/4" inlet cone |
1 |
|
12 |
973 180 |
Connecting elbow, no
hooks |
1 |
|
|
973 182 |
Connecting elbow, with
hooks |
1 |
|
13 |
938 795 |
Exhaust spring, 66 mm
503 |
6 |
|
14 |
853 355 |
Exhaust spring hooks |
12 |
|
15 |
|
Safety Wire |
|
|
|
842 758 |
THREADED WELD ON BOSS
FOR 8MM EGT PROBES, NOT SHOWN |
2 |
|
994
236
|
Gasket set 503 DCDI ignition engine |
1
|
|
|
|

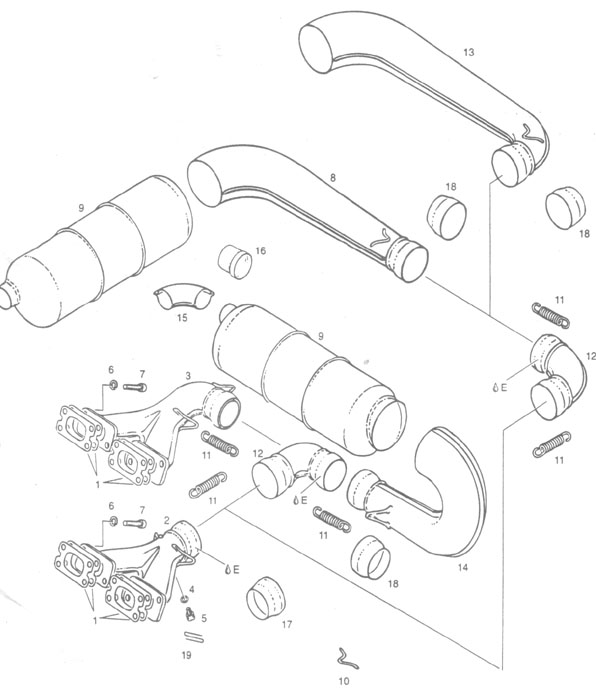

Rotax 503 side mount exhaust system
|
|
# |
Part # |
Description |
|
1 |
831 849 |
Exhaust gasket, 503CDI |
|
2 |
878 937 |
Manifold assy, 503
|
|
4 |
950 141 |
Gasket ring 8x13 |
|
5 |
941 615 |
Capstan screw
M8x1 x1 0 |
|
6 |
945 752 |
Lock washer A8, 503 |
|
7 |
840 991 |
Allen screw M8x30,22NM |
|
8 |
973 546 |
Inlet cone assy |
|
9 |
973 175 |
Muffler can assy |
|
10 |
853 355 |
Exhaust Hook 503 |
|
11 |
938 795 |
Springs, 66mm, 503
|
|
12 |
973 180 |
Elbow, no hooks |
|
|
973 182 |
Elbow w/hooks |
|
15 |
879 920 |
Outlet elbow assy |
|
16 |
978 640 |
Outlet tube assy |
|
17 |
878 660 |
Ball joint, male |
|
18 |
878 666 |
Ball joint, female |
|
19 |
|
Safety wire, .032
stainless |
|
|
842 758 |
Threaded weld on boss
for 8mm EGT probes, not shown |
|
Rotax 503 exhaust system parts |
|
|
|
|
|
|
|
