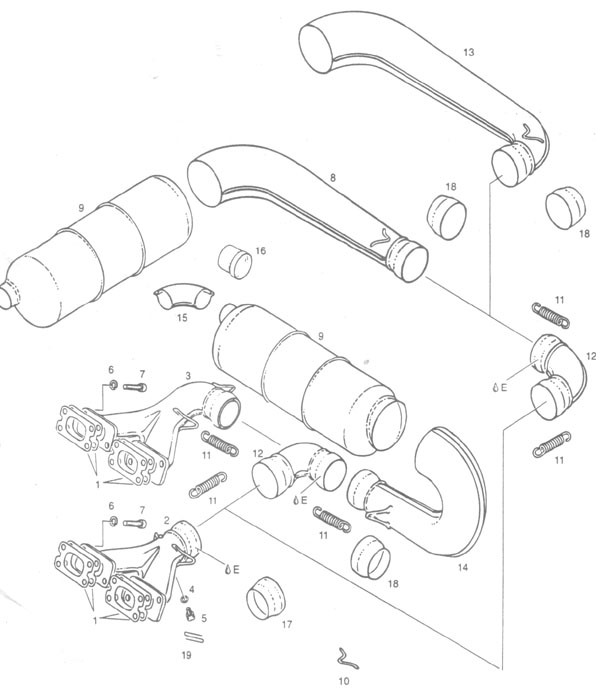

Rotax 503 exhaust system
|
|
 |
|
# |
Part # |
Description |
Qty Req. |
Canadian
price |
|
|
1 |
831 849 |
Exhaust gasket, 503 CDI
|
4 |
7.75 |
|
|
2 |
878 937 |
Exhaust manifold, 503
threaded |
1 |
185.00 |
|
|
3 |
|
|
|
|
|
|
4 |
950 141 |
Gasket ring, A8x13 2 |
2 |
1.00 |
|
|
5 |
941 615 |
Capstan screw, M8x1x10 |
2 |
7.50 |
|
|
6 |
945 752 |
503 4 Lock washer A8 |
4 |
.25 |
|
|
7 |
840 991 |
Allen screw M8x30, 22NM |
4 |
1.25 |
|
|
8 |
973 182 |
Connecting elbow with
hooks |
1 |
171.00 |
|
|
|
973 180 |
Connecting elbow, no
hooks |
1 |
155.00 |
|
|
9 |
973 198 |
Muffler assy, sidemount,
10 3/8" inlet for 503 3pc |
1 |
599.00 |
|
|
10 |
973 274 |
Muffler assy, 90 degree |
1 |
599.00 |
|
|
11 |
973 191 |
Muffler assy, straight
for 503, 16 3/4" inlet cone |
1 |
599.00 |
|
|
12 |
973 180 |
Connecting elbow, no
hooks |
1 |
155.00 |
|
|
|
973 182 |
Connecting elbow, with
hooks |
1 |
175.00 |
|
|
13 |
938 795 |
Exhaust spring, 66 mm
503 |
6 |
3.00 |
|
|
14 |
853 355 |
Exhaust spring hooks |
12 |
2.00 |
|
|
15 |
|
Safety Wire |
Obtain locally |
|
|
|
|
842 758 |
THREADED WELD ON BOSS
FOR 8MM EGT PROBES,NOT SHOWN |
2 |
9.50 |
|
|
994
236
|
Gasket set 503 DCDI ignition engine |
1
|
125.80 |
|
|
|
|
|
|
|
|
|
Labour rate at $79.95 per hour CDN |
|
|
|
|
|
|
|
|
|
|
|
|
|
